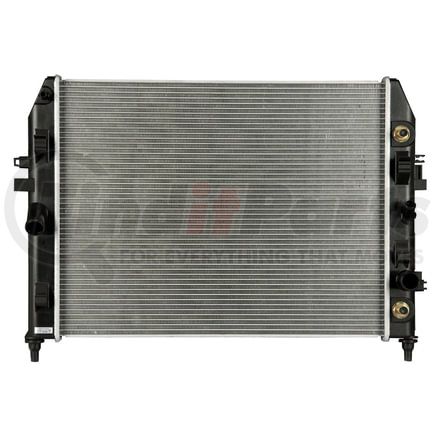

REACH COOLING 41-2861 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction
REACH COOLING 41-2861 Specifications
Product Attributes
| Core Thickness | 15.9 MM |
| Core Row Quantity | 1 |
| Core Height | 546.1 MM |
| Core Width | 16.5 IN |
| Core Height | 21.5 IN |
| Core Width | 419.1 MM |
| Transmission Oil Cooler Type | Concentric |
| Tank Material | Plastic |
| Core Thickness | 0.625 IN |
| Engine Oil Cooler Included | No |
| Transmission Oil Cooler Distance between Fittings | 304.80 MM |
| Core Material | Aluminum |
| Outlet Location | Bottom Right |
| Down Flow Or Cross Flow Type | Cross Flow |
| Inlet Diameter | 31.8 MM |
| Outlet Diameter | 31.8 MM |
| Transmission Oil Cooler Distance between Fittings | 12 IN |
| Transmission Oil Cooler Included | Yes |
| Inlet Diameter | 1.25 IN |
| Outlet Diameter | 1.25 IN |
| Inlet Location | Center Left |
| Radiator Cap Included | Not Needed |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 08859869506954 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-2861 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 103159 |
| APDI | 8012861 |
| APDI RADS | 8012861 |
| Advance Auto Parts | 812861 |
| AutoZone | B2861 |
| Autokool | 2861 |
| CRS | CUC2861 |
| CRS Automotive | CRS2861, CUC2861 |
| CSF | 3302 |
| Cancore Industries | C2861 |
| CryoMAX | 2861 |
| DENSO | 2213515, 221-3515 |
| DPI DataPoint Inc | 2861 |
| Dixin USA | DX2861 |
| Factory Air | RAD2861 |
| Federated | 2861 |
| GLOBAL PARTS DISTRIBUTORS | 2861C |
| Genera - Archived | 2861 |
| Keystone Auto Industries | RAD2861 |
| Koyo | A2861 |
| Mazda | LFG1-15-200E, LFG115200B, LFG115200D, LFG115200E, LFG2-15-200E, LFG215200D, LFG215200E |
| Murray Heat Transfer | CU2861 |
| NAPA | CU2861, NR2861B |
| Nissens | 68527 |
| Northern Radiator | CR2861 |
| OSC | 2861 |
| PACIFIC BEST INC. | PR2861A, PR2861KA |
| PBI | PR2861A |
| Partslink | MA3010218, MA3010219 |
| Performance Radiator | 2390 |
| Platinum Pro | RAD2861 |
| RadCool | 2861 |
| Spectra Premium | CU2861 |
| Sunbelt Radiators Inc | SBR2861 |
| TYC | 2861 |
| Tongshi | 71209 |
| US Motor Works | USR2861 |
| Vista Pro | 434055 |
| Visteon | 8732 |
REACH COOLING 41-2861 Fits Vehicles
- Mazda MX-5 (2006-2015)
- Mazda MX-5 Miata (2006-2015)
