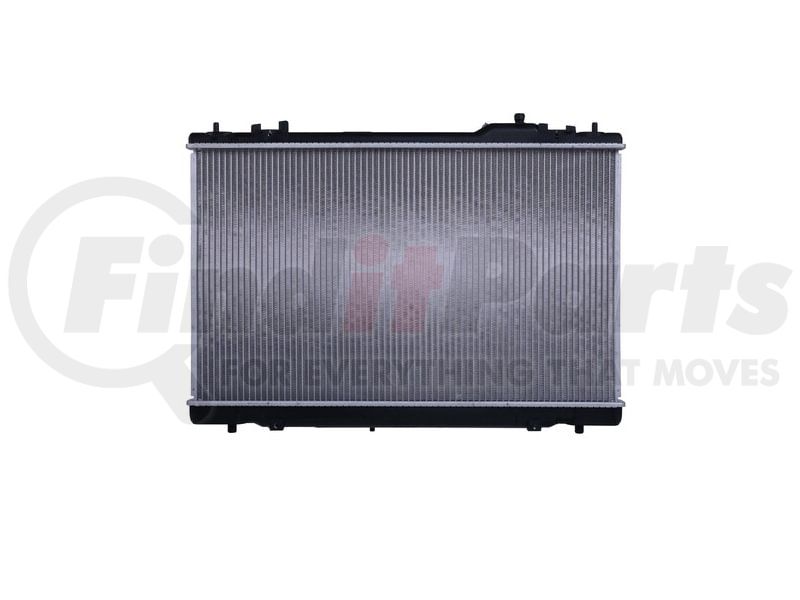

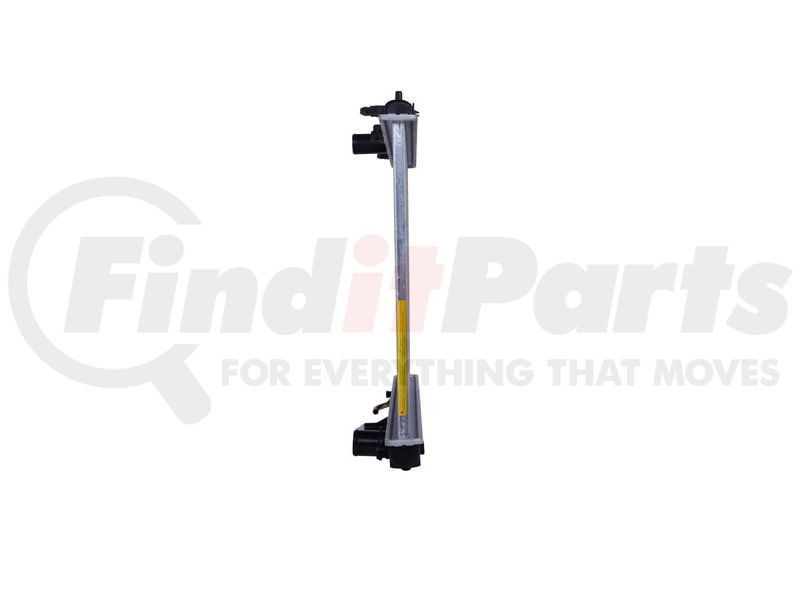

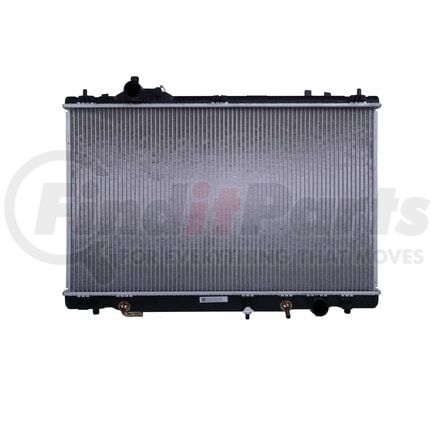

(888) 312-8812 Login SignupREACH COOLING 41-13018 Radiator
Tap to view 2 more
$18649
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16

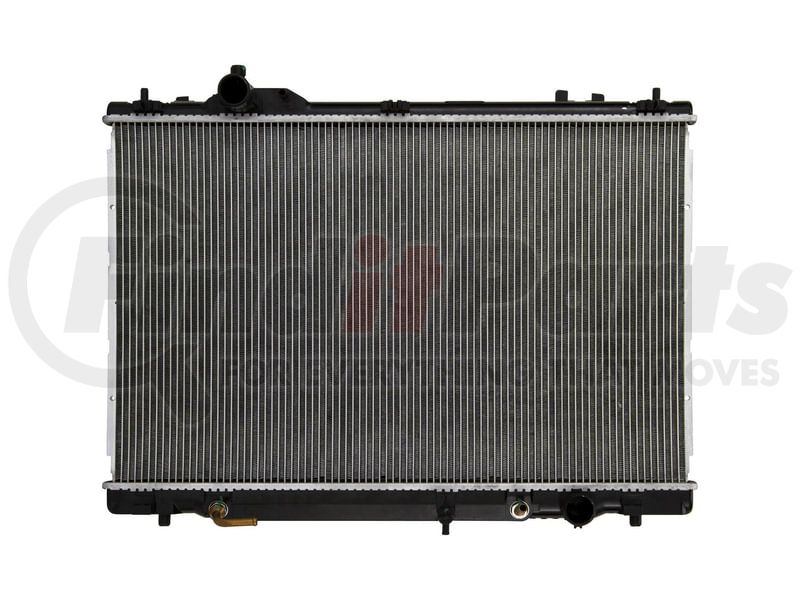

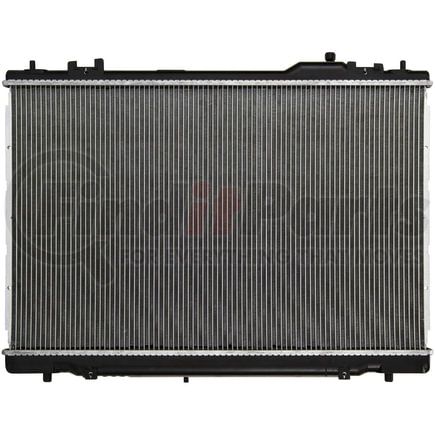

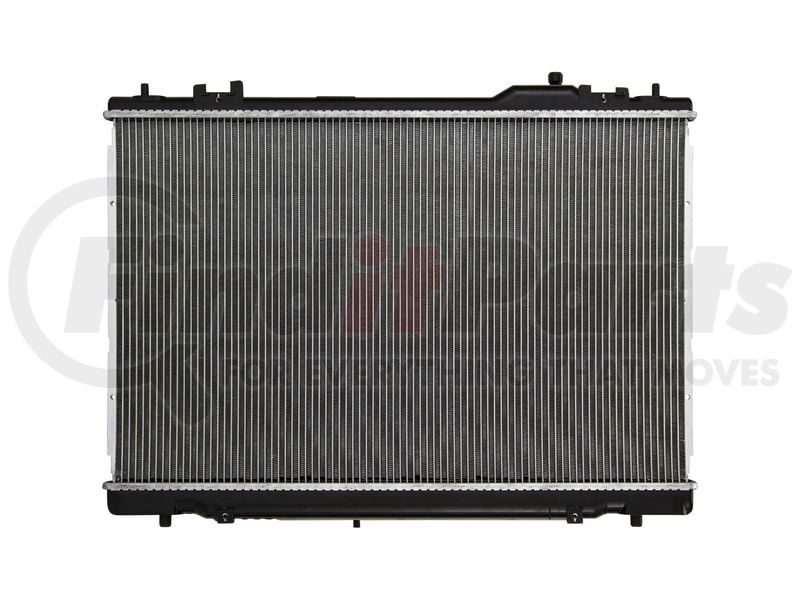

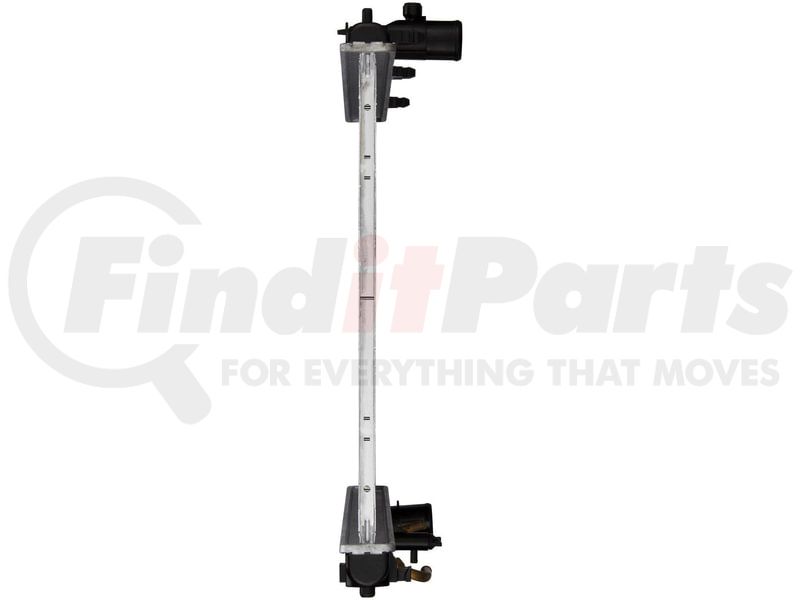

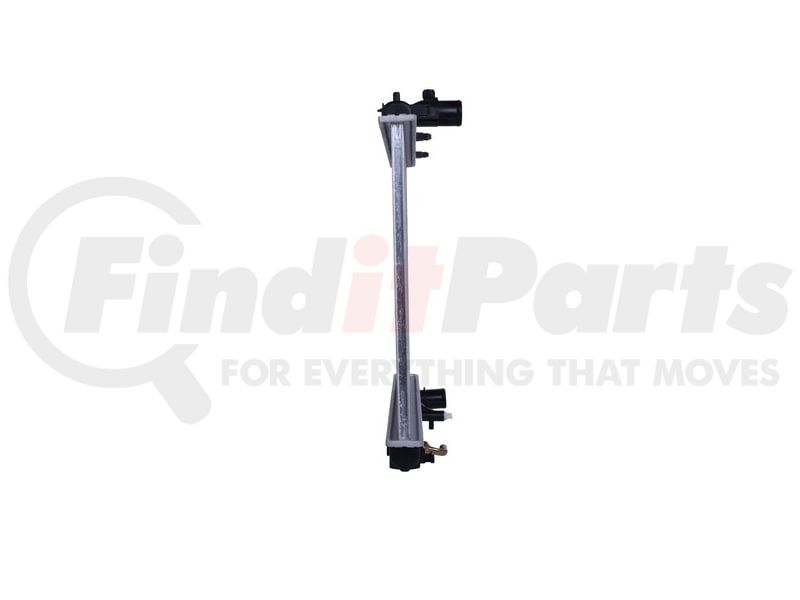

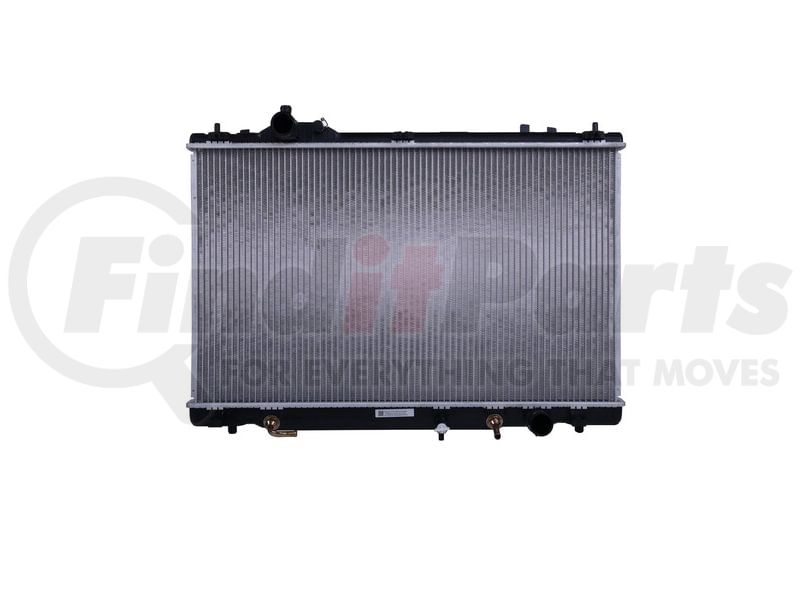

REACH COOLING 41-13018 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction
REACH COOLING 41-13018 Specifications
Product Attributes
| Transmission Oil Cooler Included | Yes |
| Inlet Header Length | 739.8 MM |
| Transmission Oil Cooler Distance between Fittings | 375 MM |
| Core Height | 425 MM |
| Core Thickness | 0.63 IN |
| Core Height | 16.73 IN |
| Outlet Diameter | 38 MM |
| Core Thickness | 16 MM |
| Outlet Diameter | 1.5 IN |
| Outlet Header Length | 29.375 IN |
| Core Row Quantity | 1 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Width | 27.87 IN |
| Engine Oil Cooler Included | No |
| Core Width | 708 MM |
| Inlet Header Width | 2 IN |
| Outlet Header Length | 746.1 MM |
| Outlet Location | Bottom Right |
| Inlet Header Length | 29.125 IN |
| Transmission Oil Cooler Type | Concentric |
| Outlet Header Width | 2 IN |
| Inlet Header Width | 50.80 MM |
| Outlet Header Width | 50.80 MM |
| Inlet Location | Top Left |
| Inlet Diameter | 1.5 IN |
| Transmission Oil Cooler Distance between Fittings | 14.76 IN |
| Radiator Cap Included | No |
| Inlet Diameter | 38 MM |
| Down Flow Or Cross Flow Type | Down Flow |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 08859869506923 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-13018 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 103636 |
| APDI | 8013018 |
| APDI RADS | 8013018 |
| Advance Auto Parts | 813018 |
| AutoZone | B13018 |
| Autokool | 13038 |
| CSF | 3386 |
| CryoMAX | 0R-013018-H1CM, 13018, 0R013018H1CM |
| DENSO | 2219223, 2219555, 221-9223, 221-9555 |
| DPI DataPoint Inc | 13018 |
| Dixin USA | DX13018 |
| Factory Air | RAD13018 |
| Federated | 13018 |
| GLOBAL PARTS DISTRIBUTORS | 13018C |
| Keystone Auto Industries | RAD13018 |
| Koyo | A13018 |
| Lexus | 16400-38200, 16400-38201, 16400-38202, 1640038200, 1640038201, 1640038202 |
| Murray Heat Transfer | 8013018 |
| NAPA | CU13018, NR13018B |
| Nissens | 646819 |
| Northern Radiator | CR13018 |
| OSC | 13018 |
| PACIFIC BEST INC. | PR13018A |
| PBI | PR13018A |
| Partslink | LX3010137 |
| Performance Radiator | 2802 |
| Platinum Pro | RAD13037 |
| RadCool | 13018 |
| Spectra Premium | CU13018 |
| UNIVERSAL AIR CONDITIONER (UAC) | RA13018C |
| US Motor Works | USR13018 |
REACH COOLING 41-13018 Fits Vehicles
- Lexus LS460 (2009-2017)
- Lexus LS600h (2008-2016)
