REACH COOLING 31-4537 Part Description
Manufacturer
Product Description

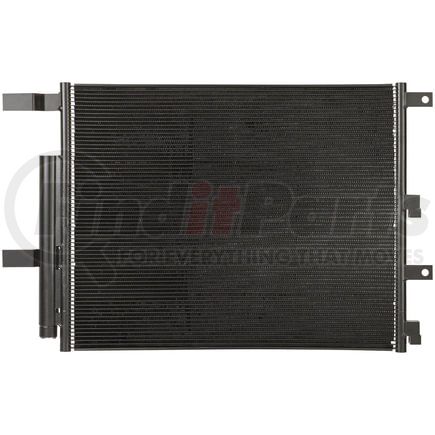

A/C Condenser
Application Summary
Ram:2013-2018 2500/ 3500/2013 4000/2013-2017 4500/2013-2016 5500
Features & Benefits
- Our fin edges are folded for increased stability and heat disbursement properties.
- Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Reach condensers feature a parallel flow design to increase cooling efficiency.
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
REACH COOLING 31-4537 Specifications
Product Attributes
| Core Length | 584.5 MM |
| Outlet Fitting Type | Block Fitting |
| Core Thickness | 16 MM |
| Core Width | 454.2 MM |
| Condenser Core Type | Parallel Flow |
| Mounting Hardware Included | Seals and Gaskets not included |
| Inlet Fitting Type | Block Fitting |
| Includes Drier | Yes |
| Core Thickness | 0.63 IN |
| Core Length | 23 IN |
| Core Width | 17.88 IN |
| Core Material | Aluminum |
| Outlet Diameter | 0.46 IN |
| Inlet Diameter | 11.8 MM |
| Inlet Diameter | 0.46 IN |
| Outlet Diameter | 11.8 MM |
REACH COOLING 31-4537 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 300207 |
| APC | 204537 |
| APC Inc | 204537 |
| APDI | 7014537 |
| APDI RADS | 7014537 |
| Advance Auto Parts | 714537 |
| AutoZone | 7-4537 |
| Autokool | 4537 |
| CRS | AC4537 |
| CSF | 10753 |
| Chrysler | 52014736AA |
| CryoMAX | 0A004537PFYH, 4537 |
| DPI DataPoint Inc | 4537 |
| FVP | CON4537 |
| Factory Air | CON4537 |
| Federated | 4537 |
| Four Seasons | 41077 |
| Frontera | 4537AM |
| GLOBAL PARTS DISTRIBUTORS | 4537C |
| Gilmore Products | AUC4537 |
| Global Heat Transfer | 4537 |
| Keystone Auto Industries | CND4537 |
| Lynol Cooling Systems | AC4537 |
| Murray Heat Transfer | 7-4537 |
| NAPA | 74537, NC4537B |
| Northern Factory Sales | CD82218 |
| Northern Radiator | CD82218 |
| OSC | 4537, 74537 |
| Omega | 2634116 |
| Omega Environmental Technologies | 2434116 |
| PACIFIC BEST INC. | PC4537 |
| Partslink | CH3030258 |
| Performance Radiator | 3440 |
| Platinum Pro | CND4537 |
| RadCool | 4537 |
| Ram | 52014736AA |
| Spectra Premium | 7-4537, 74537 |
| Sunbelt Radiators Inc | SBC-4537 |
| TYC | 4537 |
| UAC | CN4537PF, CN4537PFC, CN 4537PFC |
| UNIVERSAL AIR CONDITIONER (UAC) | CN4537PFC |
| XINTIAN | AC74305 |
REACH COOLING 31-4537 Fits Vehicles
- Ram 4000 (2013)
- Ram 5500 (2013-2016)
- Ram 4500 (2013-2017)
- Ram 3500 (2013-2018)
- Ram 2500 (2013-2018)
