(888) 312-8812 Login SignupRAYBESTOS 980528R Raybestos R-Line Brake Rotor
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980528R Part Description
Manufacturer
Product Description

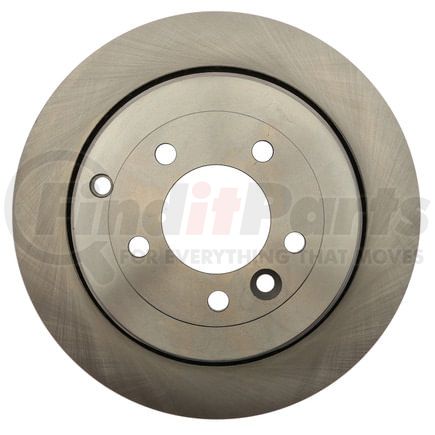

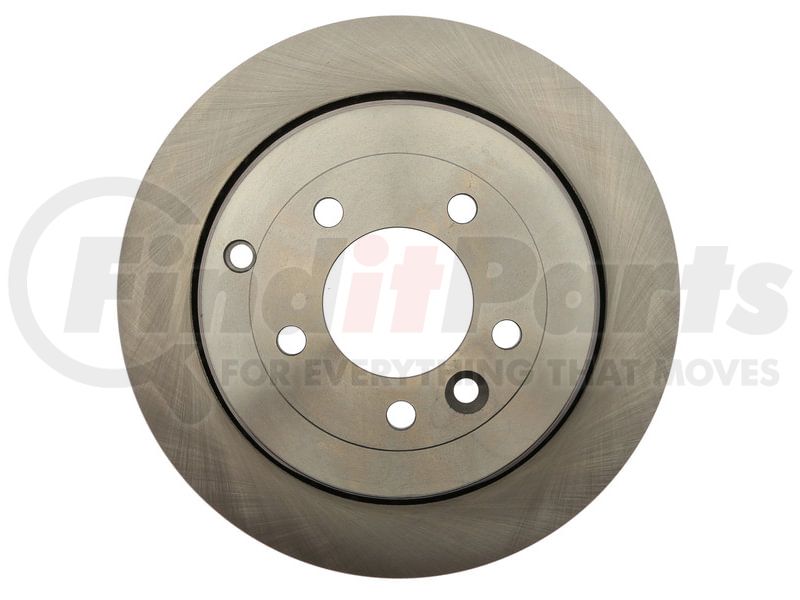

Raybestos R-Line Brake Rotor
Application Summary
2007-2005 Land Rover LR3 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980528R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.11 IN |
| Center Hole Diameter | 79 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.67 IN |
| Discard Thickness | 17 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Nominal Thickness | 0.79 IN |
| Nominal Thickness | 20.05 MM |
| Outside Diameter | 12.795 IN |
| Outside Diameter | 325 MM |
| Overall Height | 2.346 IN |
| Overall Height | 59.6 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372397 |
RAYBESTOS 980528R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH200951, YH200951C, YH200951P |
| Bendix | PRT5947 |
| Bosch | 44011168 |
| BrakeBest | 44011168, 980528, 980528RGS |
| Brembo | 09.8874.31 |
| CENTRIC | 121.22012 |
| Centric Parts | 121.22012, 125.22012, 126.22012SL, 126.22012SR, 127.22012L, 127.22012R, 227.22012L, 227.22012R |
| Dura Corp | BR34335, BR901134 |
| DuraGo | BR901134 |
| Land Rover | SDB000635, SDB000636 |
| NAPA BRAKES | SDK6183 |
| Newtek Automotive USA | 34335 |
| Promax | 14-34335 |
| Qualis | 45433 |
| TRW | 4794 |
| UAP | 34335 |
| Wagner Brake | BD180076 |
| Winhere | 6620378 |
RAYBESTOS 980528R Fits Vehicles
- Land Rover LR3 (2005-2007)
