DELPHI TC6113 Part Description
Manufacturer
Product Description

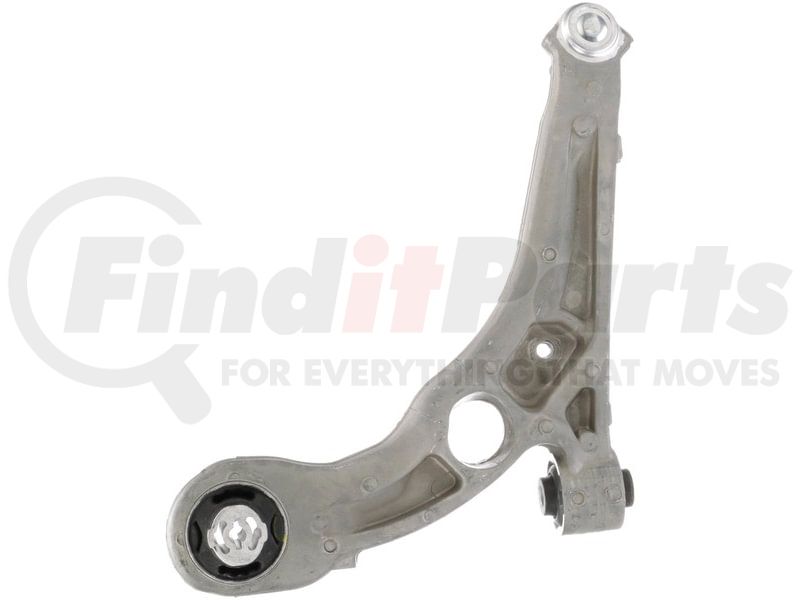

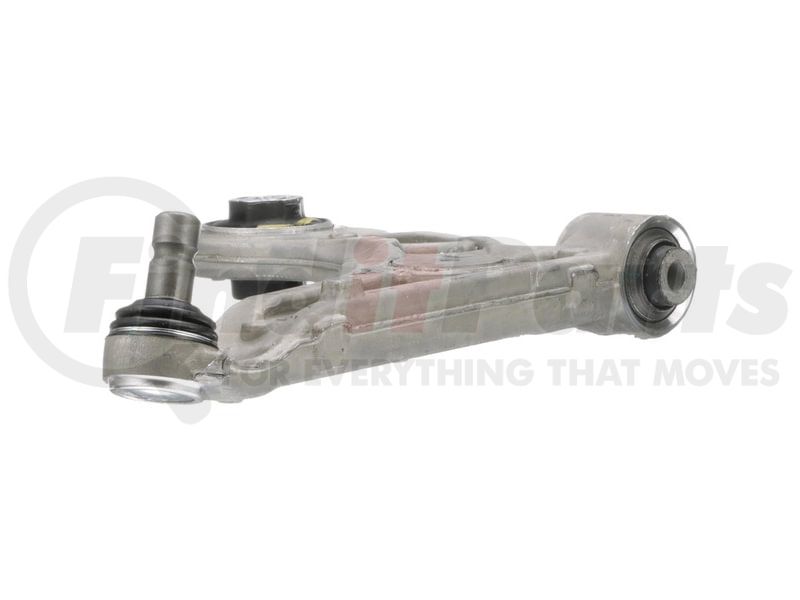

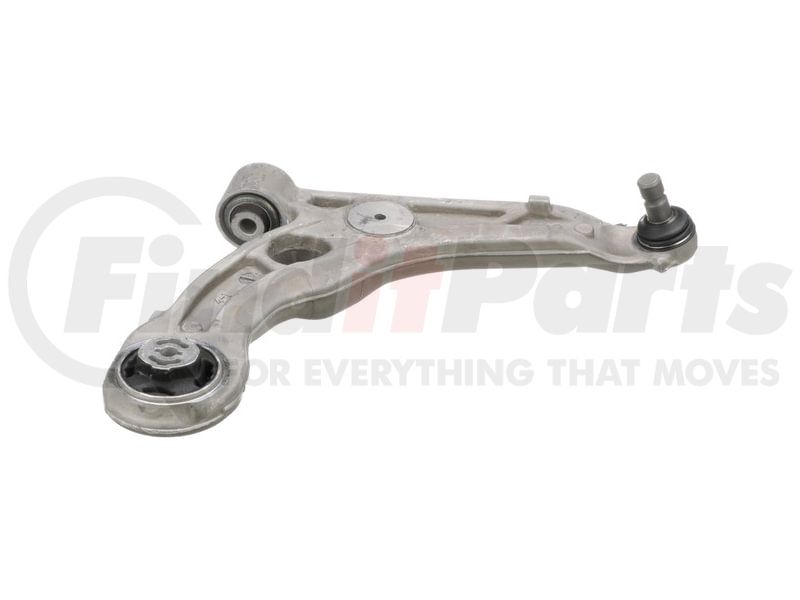

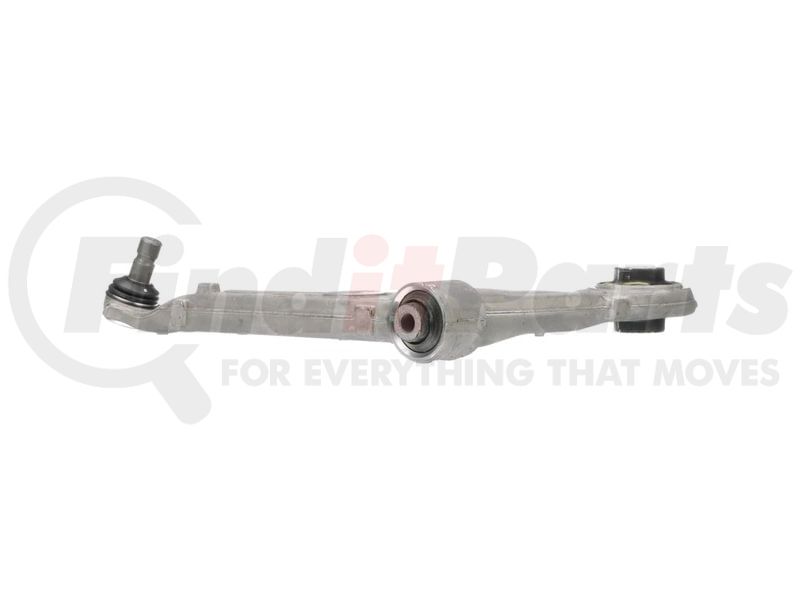

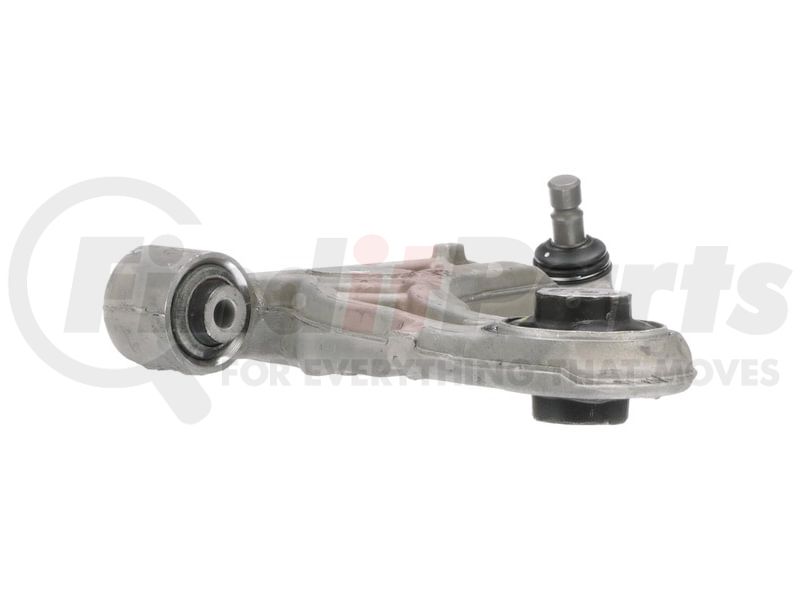

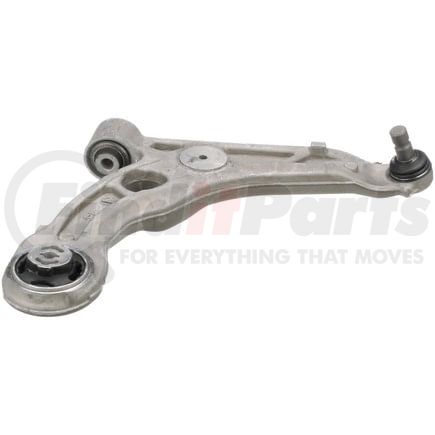

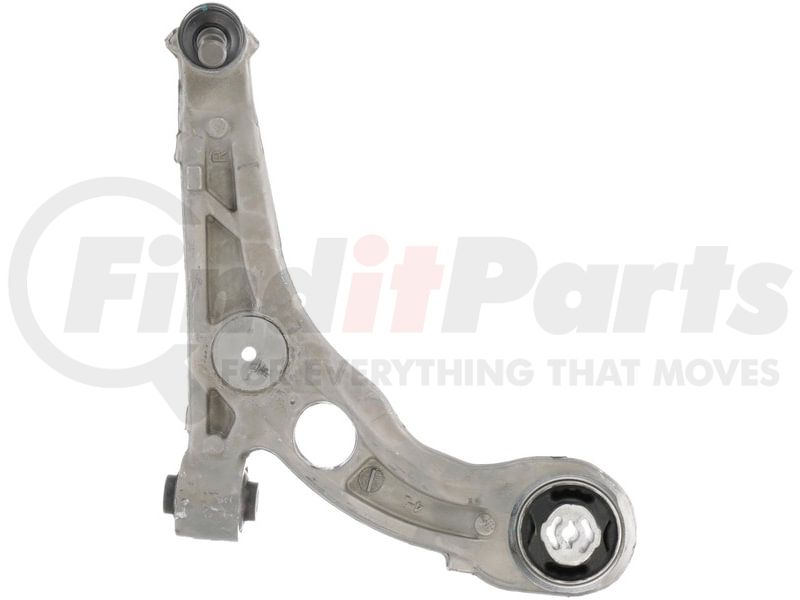

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6113 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower, Front Right Lower. For the position specific to your vehicle, refer to the Applications. |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Bushings Included | Yes |
| Control Arm Color | Gray |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Distance Between Bushings | 10.209 IN |
| Distance Between Bushings | 259.30 MM |
| Mounting Hardware Included | No |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushing Color | Black |
| Bushing Material | Rubber |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Inside Diameter | 0.559 IN |
| Bushing Length | 55.80 MM |
| Bushing Length | 2.197 IN |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 288.50 MM |
| Control Arm Maximum Length | 237.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Mounting Hole Diameter | 12.30 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Width | 11.358 IN |
| Control Arm Maximum Length | 9.331 IN |
| Mounting Hole Diameter | 0.484 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604327036 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6113 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 4877 849AA, 4877 849AB, 4877 849AC, 4877 849AD, 68080 584AE |
| DORMAN | CB81484, CB82073PR, CB81484PR, 521-009, CB82073 |
| Dorman | 524-582 |
| MAS Industries | CB81484, CB81484PR |
| MEVOTECH | CMS251201, CMS251237 |
| MOOG Chassis Products | K201730, K201731, RK622964, RK622965 |
| N/A | CMS251201, 4877 848AA, CB81483, 524-581, GS251201, CB81483PR, 4877 848AD, 68228520AC, 68228520AB, 68228520AA, 68228520AG, 68228 520AF, 68228 520AE, 68228520AD, 68080 584AD, 6808 0584AC, 4878 848AD, 4877 848AC, 4877 848AB |
DELPHI TC6113 Fits Vehicles
- Chrysler 200 (2015-2017)
- Dodge Dart (2013-2016)
