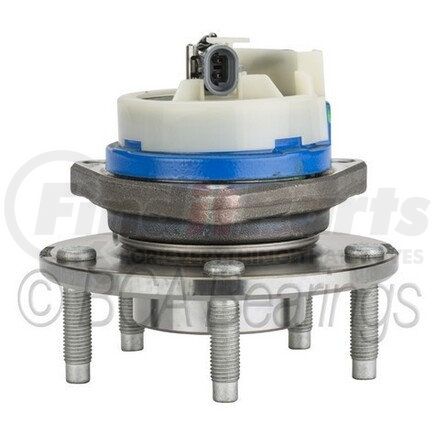

(888) 312-8812 Login SignupNTN WE61520 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$35949
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61520 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61520 Specifications
Product Attributes
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 2.760 IN |
| Brake Pilot Diameter | 2.780 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring |
| Drive Type | Non-driven |
| Flange Offset | 1.654 IN |
| Bolt Circle Diameter | 4.752 IN |
| Knuckle Bolt Hole Size | M12X1.75 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615203 |
NTN WE61520 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | FW297, 513139 |
| CENTRIC | 407.62024 |
| Centric Parts | 407.62024E, 407.62024 |
| GMB | 7300332 |
| GSP | 104139 |
| General Motors | 12413210, 7467106, 7467190, 7470570, 12413209, 52457458, 7467145, 7470569, 88967287 |
| MOOG Chassis Products | 513139 |
| Mevotech | H513139 |
| Raybestos Brakes | 713139 |
| SKF | BR930099 |
| Schaeffler | FW9139, 102206 |
| Timken | 513139 |
NTN WE61520 Fits Vehicles
- Chevrolet Corvette (1997-2008)
- Cadillac XLR (2004-2008)
