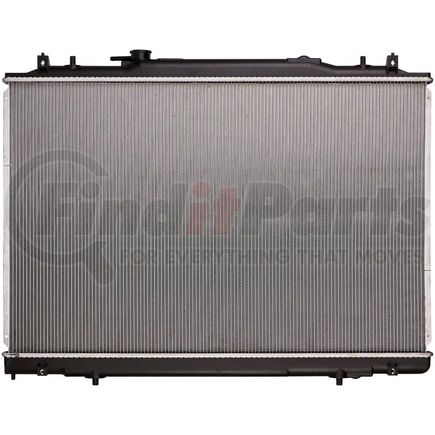

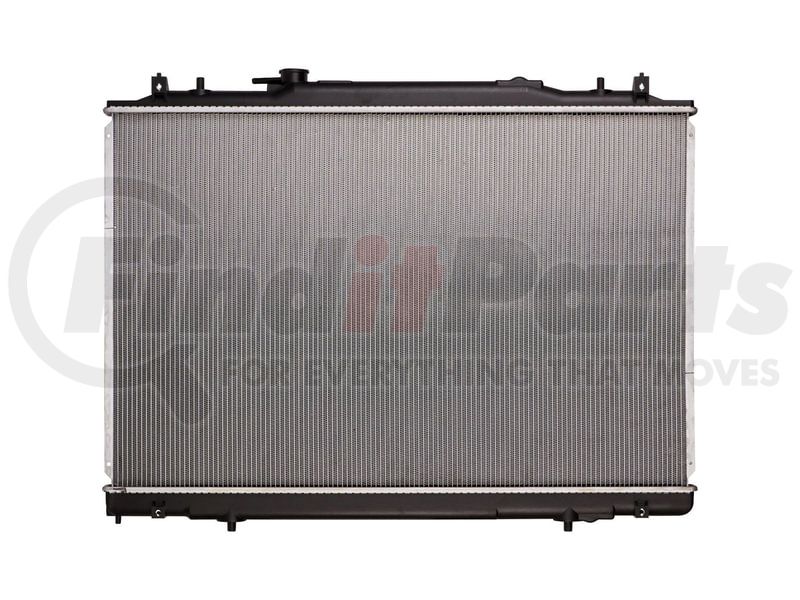

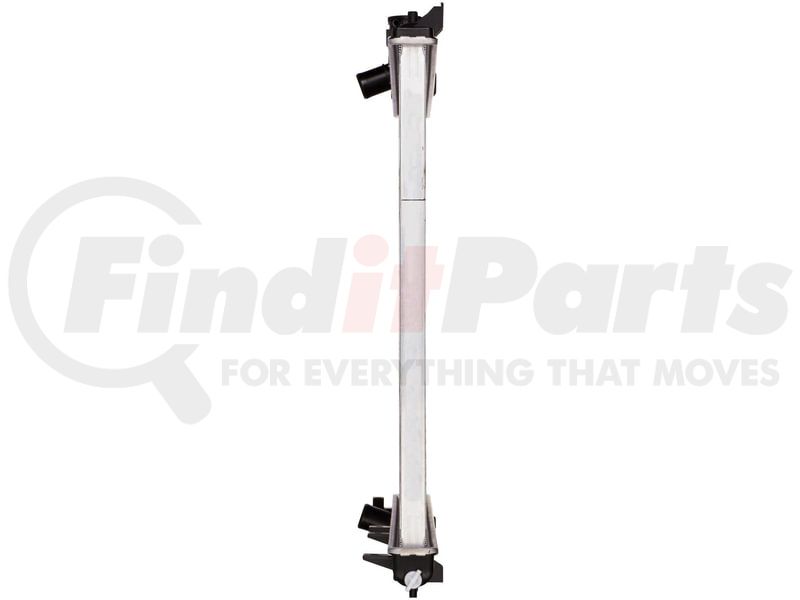

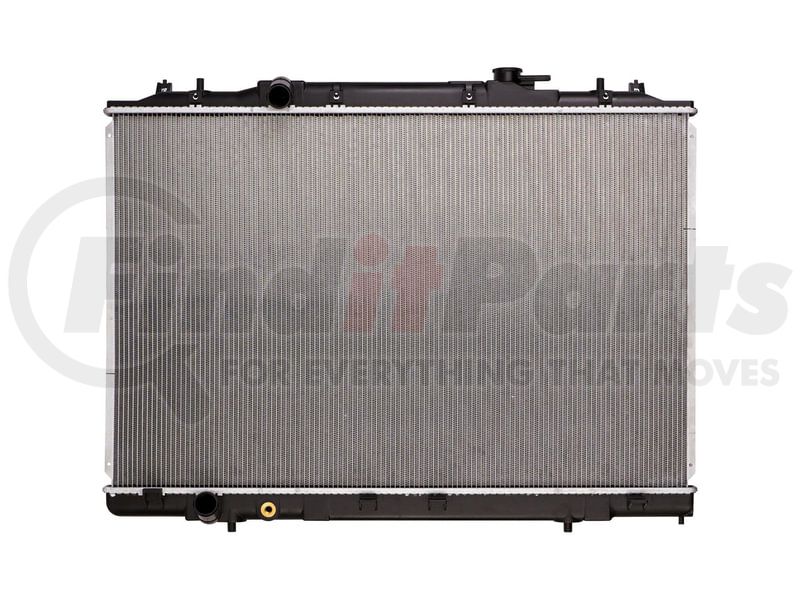

REACH COOLING 41-13402 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction
REACH COOLING 41-13402 Specifications
Product Attributes
| Core Height | 20.25 IN |
| Core Height | 514.4 MM |
| Core Width | 31.25 IN |
| Outlet Header Length | 31.312 IN |
| Inlet Header Length | 795.3 MM |
| Inlet Header Length | 31.312 IN |
| Core Thickness | 26.8 MM |
| Core Thickness | 1.055 IN |
| Core Width | 793.8 MM |
| Outlet Location | Bottom Left |
| Engine Oil Cooler Included | No |
| Outlet Header Length | 795.3 MM |
| Inlet Diameter | 1.25 IN |
| Tank Material | Plastic |
| Inlet Header Width | 50.80 MM |
| Inlet Location | Top Left |
| Core Material | Aluminum |
| Outlet Header Width | 50.80 MM |
| Core Row Quantity | 1 |
| Inlet Diameter | 31.8 MM |
| Outlet Diameter | 31.8 MM |
| Outlet Header Width | 2 IN |
| Down Flow Or Cross Flow Type | Down Flow |
| Outlet Diameter | 1.25 IN |
| Transmission Oil Cooler Included | No |
| Radiator Cap Included | No |
| Inlet Header Width | 2 IN |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 08859869503052 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-13402 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 103831 |
| APDI | 8013402 |
| APDI RADS | 8013402 |
| Acura | 19010-5J6-A01, 190105J6A01, 1J010-5WS-A01, 1J0105WSA01 |
| Advance Auto Parts | 813402 |
| AutoNation | 19812-00053 |
| AutoZone | B13402 |
| CRS | CUC13402 |
| CSF | 3644 |
| Cancore Industries | C13402 |
| CryoMAX | 0R-013402-H2CM, 0R013402H2CM, 0AHD6476, 13402 |
| DENSO | 2219337, 221-9337 |
| DPI DataPoint Inc | 13402 |
| Dixin USA | DX13402 |
| Factory Air | RAD13402 |
| Federated | 13402 |
| GLOBAL PARTS DISTRIBUTORS | 13402C |
| Genera - Archived | 13402 |
| Honda | 190105J6A01, 19010-5J6-A01 |
| Keystone Auto Industries | RAD13402 |
| Koyo | A13402 |
| Lynol Cooling Systems | 13402 |
| Murray Heat Transfer | 8013402 |
| NAPA | CU13402, NR13402B |
| Northern Factory Sales | CR13402 |
| Northern Radiator | CR13402 |
| OSC | 13402 |
| PACIFIC BEST INC. | PR13402A |
| PBI | PR13402A |
| Partslink | AC3010153 |
| Performance Radiator | 2237 |
| Platinum Pro | RAD13402 |
| RadCool | 13402 |
| Spectra Premium | CU13402 |
| Sunbelt Radiators Inc | SBR13402 |
| TYC | 13402 |
| Tongshi | 7420426, 74204 |
| UNIVERSAL AIR CONDITIONER (UAC) | RA13402C |
| US Motor Works | USR13402 |
REACH COOLING 41-13402 Fits Vehicles
- Honda Passport (2019-2023)
- Honda Ridgeline (2017-2023)
- Honda Pilot (2016-2023)
- Acura MDX (2014-2020)
