(888) 312-8812 Login SignupGABRIEL 49135 Air Adjustable Shock Absorbers
Tap to view 6 more
$157.49
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GABRIEL 49135 Part Description
Manufacturer
Product Description
Air Adjustable Shock Absorbers
Features & Benefits
- America's best-known air-adjustable shock absorbers
- Fully-adjustable air shocks help you maintain proper ride height
- Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
- Custom-sized for a direct and simple installation and fit
- Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
- Air pressure of 25 min – 200 max psi
- Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
- Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
- Ideal for temporarily towing boats and trailers or heavy loads
GABRIEL 49135 Specifications
Product Attributes
| Lower Mount Code | S1 |
| Extended Length (in) | 21.62 |
| Stroke (in) | 8.48 |
| Bore | n/a |
| Dust Tube Material | Steel |
| Boot Included | No |
| Recoil Cutoff | n/a |
| Features/Benefits 4 | Up to 1,100 lbs per pair of leveling capacity not to exceed vehicle Gross vehicle Weight Rating, product does not increase payload |
| Mounting Codes 2024.pdf | https://gabriel.com/sites/default/files/Mounting_Codes_2025.pdf |
| Upper Mount Code | BP14 |
| Compression (lb) | n/a |
| Accessory Kit # | 140523,141099 |
| Rebound (lb) | n/a |
| Features/Benefits 2 | Ideal for temporarily towing boats and trailers or heavy loads |

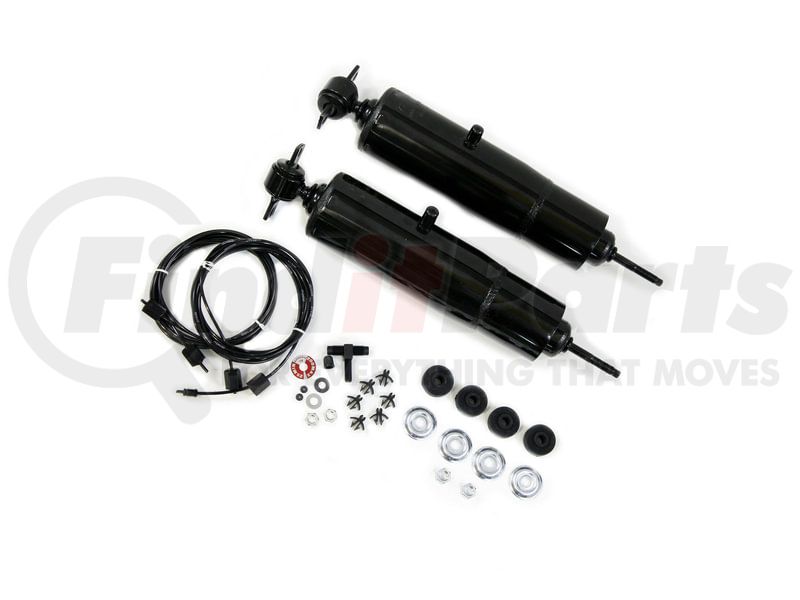

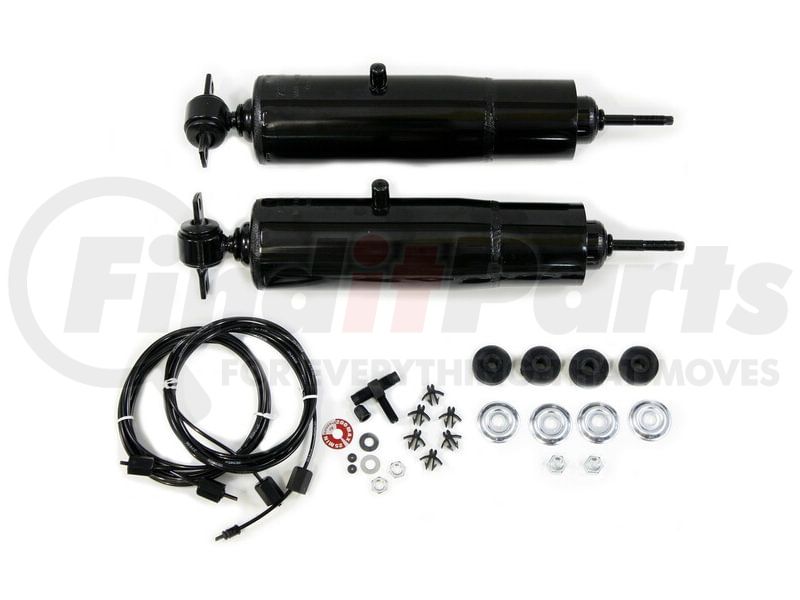

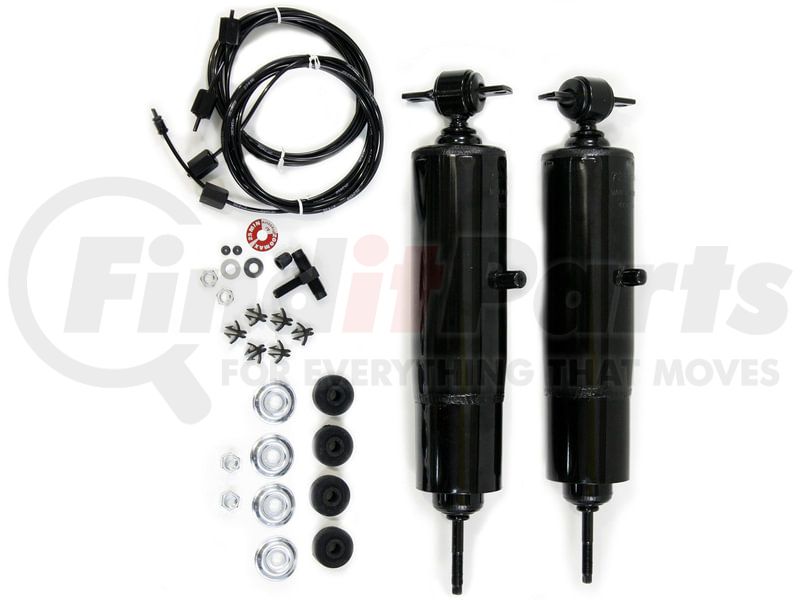

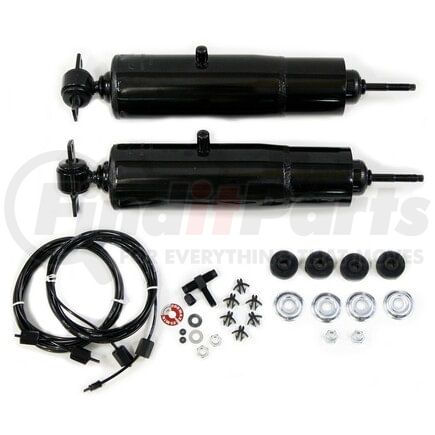

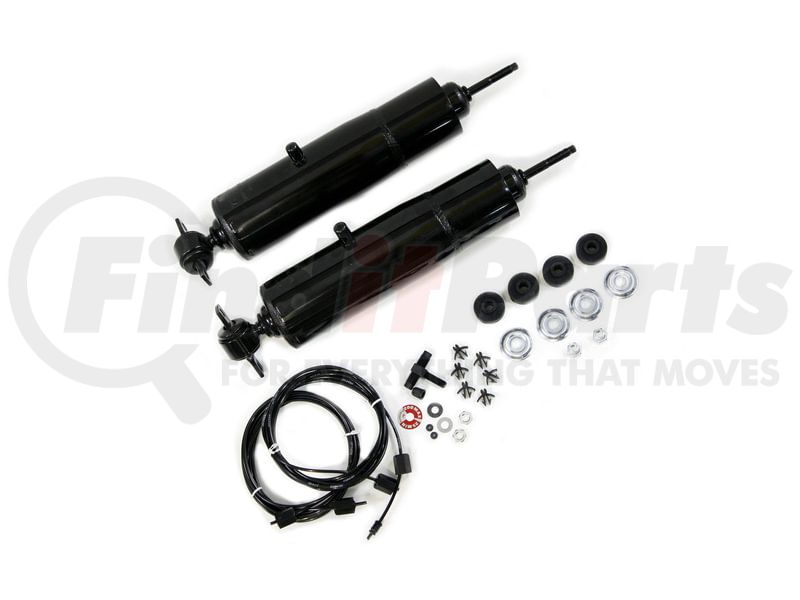

| Package Contents | 2 Shocks, 2 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 1 Washers, 1 Seal, 2 Tube assy, 2 Nuts, 4 Washers, 4 Bushings |
| Core Color | Y |
| Features/Benefits 1 | America’s best-known air-adjustable shock absorber |
| Collapsed Length (in) | 13.14 |
| Weight (lbs) | 10.70 |
| Dust Tube | n/a |
| Features/Benefits 3 | Can help improve handling and can reduce the risk of bottoming out |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin (Primary) | MX |
| UPC | 00043645503253 |
| VMRS Code | 016006001 |
| UNSPSC | 25172011 |
GABRIEL 49135 Cross References
GABRIEL 49135 Fits Vehicles
- Ford Skyliner (1957-1958)
- Ford Ranch Wagon (1957-1958)
- Ford Del Rio Wagon (1957-1958)
- Ford Courier Sedan Delivery (1957-1958)
- Ford Country Squire (1957-1959)
- Pontiac Firebird (1970-1981)
- Chevrolet Camaro (1970-1981)
