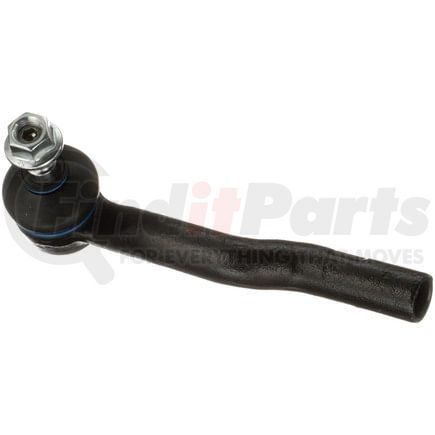

(888) 312-8812 Login SignupDELPHI TA6326 Tie Rod End
Tap to view 20 more
$6099
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Jan 6
DELPHI TA6326 Part Description
DELPHI TA6326 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 175.00 MM |
| Color | Black |
| Shank Length | 15.00 MM |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Stud Length | 15.00 MM |
| Finish | Painted |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Boot Color | Black |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 51.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| End 2 Thread Diameter | 0.551 IN |
| Cone Outside Diameter | 0.591 IN |
| Length - Stud Center to End | 2.008 IN |
| End 1 Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708948000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604347539 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA6326 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6762, 101-6763 |
| Toyota | 4546029365, 4547029135 |
DELPHI TA6326 Fits Vehicles
- Lexus SC400 (1992-1994)
- Lexus SC300 (1992-1994)
