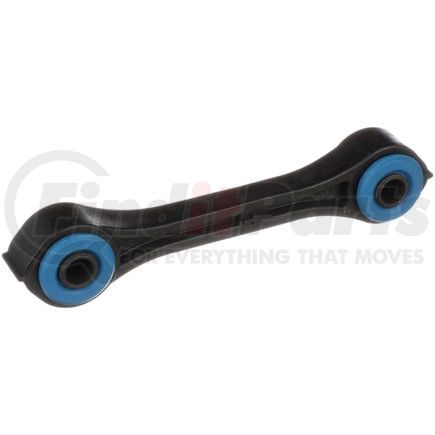

(888) 312-8812 Login SignupDELPHI TC7696 Suspension Stabilizer Bar Link
Tap to view 13 more
$1949
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
DELPHI TC7696 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7696 Specifications
Product Attributes
| Position(s) | Front |
| Item Grade | Standard Replacement |
| Material | Plastic |
| Bushing Outside Diameter | 40.30 MM |
| Bushing Color | Blue |
| Length | 194.80 MM |
| End 1 Type | Bushing |
| End 2 Type | Bushing |
| Bushings Included | Yes |
| Dust Boot Included | No |
| Bolt Thread Size | M12x1.75 |
| Width | 40.3 MM |
| Washers Included | No |
| Height | 33.70 MM |
| Grade Type | Standard Replacement |
| Bolts Included | Yes |
| Housing Material | Plastic |
| Greaseable | No |
| Bolt Head Diameter | 18.90 MM |
| Bolt Length | 72.10 MM |
| Bolt Thread Diameter | 11.97 MM |
| Distance Between Mounting Holes | 154.50 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 12.40 MM |
| Bushing Outside Diameter | 1.590 IN |
| Length | 7.670 IN |
| Width | 1.59 IN |
| Height | 1.330 IN |
| Bolt Head Diameter | 0.740 IN |
| Bolt Length | 2.840 IN |
| Bolt Thread Diameter | 0.470 IN |
| Bushing Inside Diameter | 0.490 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TW |
| UPC | 00689604341339 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC7696 Cross References
DELPHI TC7696 Fits Vehicles
- Mazda B4000 (1994-1997)
- Mazda B3000 (1994-1997)
- Mazda B2300 (1995-1996)
- Mazda Navajo (1992-1994)
- Ford Ranger (1993-1997)
- Ford Explorer (1991-1994)
