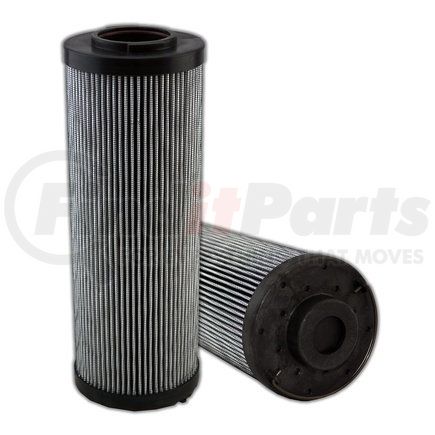

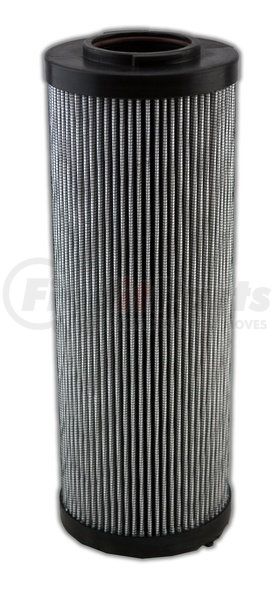

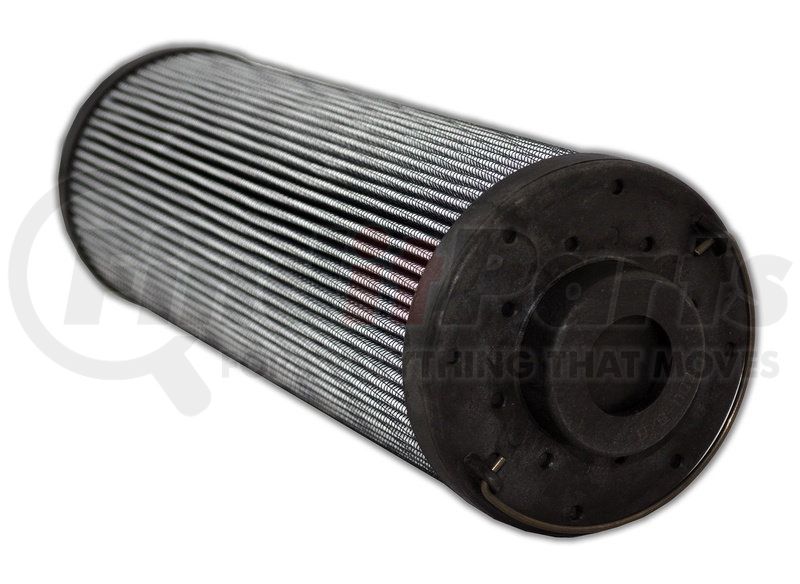

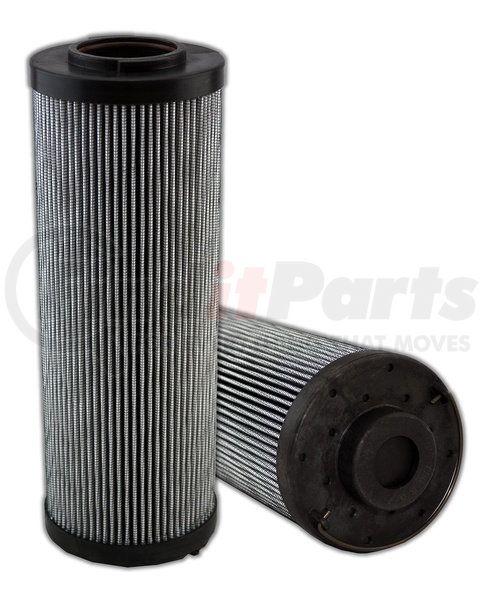

(888) 312-8812 Login SignupMAIN FILTER MF0116407 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
Tap to view 2 more
MSRP: $121.45
$10849
Save $12.96
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
MAIN FILTER MF0116407 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM HYDAC/HYCON p/n 0500R003BN2HC
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0116407 replaces OEM 0500R003BN2HC by HYDAC/HYCON and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.721 |
| Outside Diameter Bottom | 3.721 |
| Inside Diameter Bottom | 1.898 |
| BPVS Setting PSI | 44 |
| Collapse Pressure | 435 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 66.28513 |
| Filter Area sq in | 896 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM HYDAC/HYCON p/n 0500R003BN2HC
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0116407 replaces OEM 0500R003BN2HC by HYDAC/HYCON and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- Images may be a general representations of products
- Interchange/replacement for OEM HYDAC/HYCON p/n 0500R003BN2HC
- Buy hydraulic filters direct from the manufacturer
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- Images may be a general representations of products
MAIN FILTER MF0116407 Specifications
Product Attributes
| Handle | Yes |
| Height (in.) | 10.82 |
| Wrap | No |
| Bypass | Yes |
| Product Media | Glass |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Flow Direction | Outside-In |
| Beta Ratio 1 | 200/3 |
| Micron Rating | 3 |
| Collapse Pressure | 435 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Dust Holding Capacity | 66.29 grams |
| Outside Diameter (Top) | 3.72 in. |
| Beta Ratio 2 | 1000/4.5 |
| Filter Area (sq. in.) | 896 |
| BPVS Setting (PSI) | 43.5 |
MAIN FILTER MF0116407 Cross References
We have 1 alternatives for the MF0116407 by MAIN FILTER:
