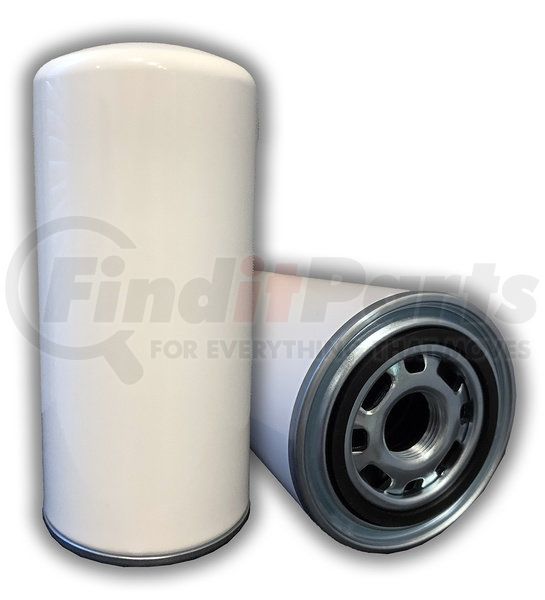

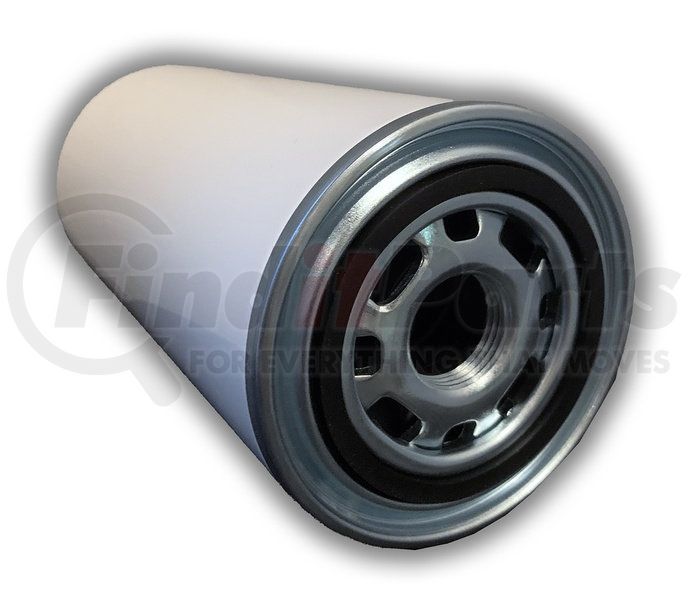

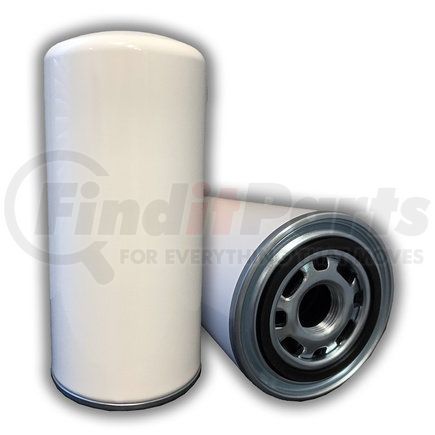

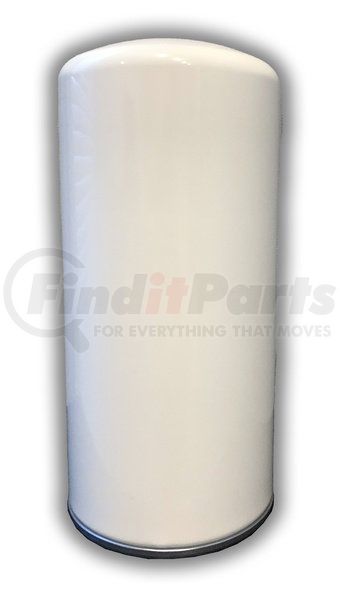

Name: Main Filter MF0165245 Aftermarket Replacement Spin-On Hydraulic Filter with 125 Micron, Wire Mesh, Outside-In Flow
SKU: mf0165245
Price: 67.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.78
Outside Diameter Bottom	3.78
Thread Size	44259
Threads	14 BSP
BPVS Setting PSI	25.4
ADBV	NO
Burst Pressure	304.6
Collapse Pressure	145
Flow Rate GPM	26 GPM
Operating Temp Min F	-13
Operating Temp Max F	248
Filter Area sq in	257
Flow Direction	Outside-In
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Micron 1	125

Features & Benefits

Interchange/replacement for OEM DONALDSON/FBO/DCI p/n CAR80
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0165245 replaces OEM CAR80 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM DONALDSON/FBO/DCI p/n CAR80
Images may be a general representations of products
Buy hydraulic filters direct from the manufacturer
Main Filter MF0165245 replaces OEM CAR80 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
All of our elements are manufactured following ISO specifications.

Features & Benefits

Interchange/replacement for OEM DONALDSON/FBO/DCI p/n CAR80
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0165245 replaces OEM CAR80 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Micron Rating	125
Product Media	Wire Mesh
Handle	No
Wrap	No
Height (in.)	8.28
Bypass	Yes
Flow Rater	26 GPM
Burst Pressure	304.6
ADBV	Yes
BPVS Setting (PSI)	25.4
Minimum Operating Temperature	-13 Deg Fahrenheit
Outside Diameter (Top)	3.78 in.
Collapse Pressure	145
Maximum Operating Temperature	248 Deg Fahrenheit
Filter Area (sq. in.)	257
Flow Direction	Outside-In
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV

MAIN FILTER MF0165245 Cross Reference

We have 1 alternatives for the MF0165245 by MAIN FILTER:

DONALDSON CAR80
