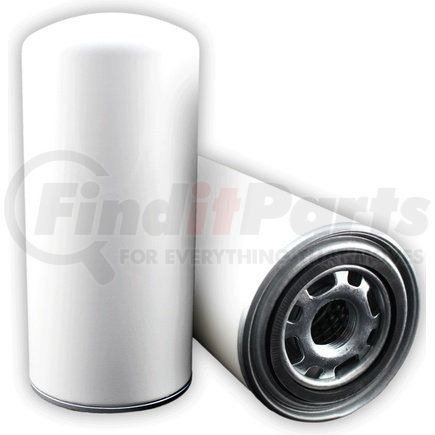

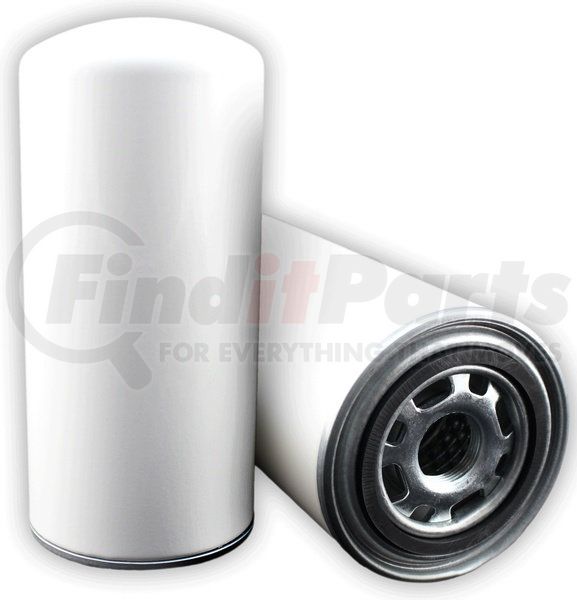

Name: Main Filter MF0596265 Aftermarket Replacement Spin-On Fuel Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0596265
Price: 54.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.78
Outside Diameter Bottom	3.78
Thread Size	44259
Threads	14 BSP
ADBV	NO
Burst Pressure	304.6
Collapse Pressure	145
Flow Rate GPM	22 GPM
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	34.92615
Filter Area sq in	472
Flow Direction	Outside-In
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM WIX p/n A03A03G
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0596265 replaces OEM A03A03G by WIX and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Main Filter MF0596265 replaces OEM A03A03G by WIX and is compatible in fit, form and function.
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM WIX p/n A03A03G
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0596265 replaces OEM A03A03G by WIX and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Micron Rating	3
Beta Ratio 1	200/3
Flow Direction	Outside-In
Gasket Material	Buna
Beta Ratio 2	1000/4.5
Handle	No
ADBV	No
Maximum Operating Temperature	248 Deg Fahrenheit
Flow Rater	22 GPM
Wrap	No
Filter Area (sq. in.)	472
Height (in.)	8.31
Outside Diameter (Top)	3.78 in.
Bypass	No
Product Media	Glass
Dust Holding Capacity	34.93 grams
Burst Pressure	304.6
Collapse Pressure	145
Fluid Type	HH / HL / HM / HV
Minimum Operating Temperature	-13 Deg Fahrenheit

Part Interchanges

Wix A03A03G

MAIN FILTER MF0596265 Cross Reference

We have 1 alternatives for the MF0596265 by MAIN FILTER:

WIX A03A03G
