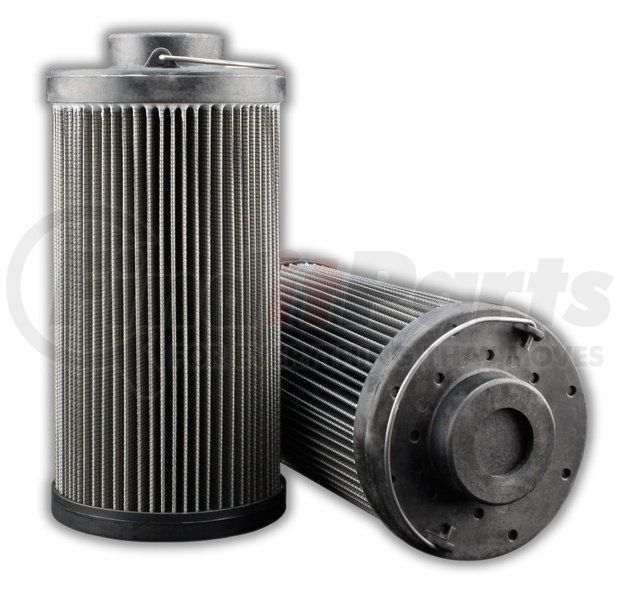

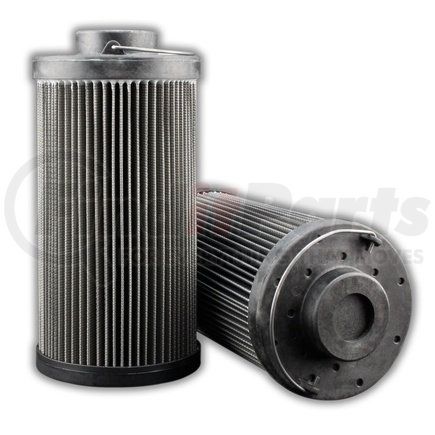

Name: Main Filter MF0064309 Aftermarket Replacement Hydraulic Filter with 50 Micron Rating, Wire Mesh, Outside-In Flow
SKU: mf0064309
Price: 111.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.721
Outside Diameter Bottom	3.721
Inside Diameter Bottom	1.898
BPVS Setting PSI	44
Collapse Pressure	435
Operating Temp Min F	-13
Operating Temp Max F	248
Filter Area sq in	602
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	3/50
Micron 1	50

Features & Benefits

Interchange/replacement for OEM FILTREC p/n RHR330S50V
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0064309 replaces OEM RHR330S50V by FILTREC and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM FILTREC p/n RHR330S50V
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Main Filter MF0064309 replaces OEM RHR330S50V by FILTREC and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
Buy hydraulic filters direct from the manufacturer

Features & Benefits

Interchange/replacement for OEM FILTREC p/n RHR330S50V
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0064309 replaces OEM RHR330S50V by FILTREC and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Handle	Yes
Height (in.)	7.64
Wrap	No
Minimum Operating Temperature	-13 Deg Fahrenheit
Flow Direction	Outside-In
BPVS Setting (PSI)	43.5
Filter Area (sq. in.)	602
Bypass	Yes
Product Media	Wire Mesh
Fluid Type	HH / HL / HM / HV
Outside Diameter (Top)	3.72 in.
Collapse Pressure	435
Gasket Material	Viton
Maximum Operating Temperature	248 Deg Fahrenheit
Micron Rating	50

Part Interchanges

Filtrec RHR330S50V

MAIN FILTER MF0064309 Cross Reference

We have 1 alternatives for the MF0064309 by MAIN FILTER:

FILTREC RHR330S50V
