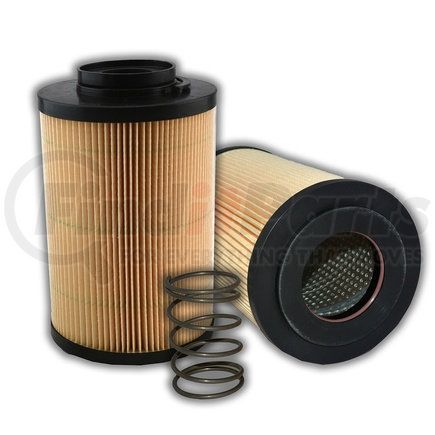

(888) 312-8812 Login SignupMAIN FILTER MF0223203 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Cellulose, Outside-In Flow
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MAIN FILTER MF0223203 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM DONALDSON/FBO/DCI p/n P171563
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0223203 replaces OEM P171563 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 5.118 |
| Inide Diameter Top | 2.539 |
| Outside Diameter Bottom | 5.118 |
| BPVS Setting PSI | 25 |
| Collapse Pressure | 44 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 36.5056 |
| Filter Area sq in | 913 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM DONALDSON/FBO/DCI p/n P171563
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0223203 replaces OEM P171563 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM DONALDSON/FBO/DCI p/n P171563
- Images may be a general representations of products
- Buy hydraulic filters direct from the manufacturer
- Main Filter MF0223203 replaces OEM P171563 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
- Interchange/replacement for OEM DONALDSON/FBO/DCI p/n P171563
- Buy hydraulic filters direct from the manufacturer
MAIN FILTER MF0223203 Specifications
Product Attributes
| Bypass | Yes |
| Height (in.) | 8.23 |
| Handle | No |
| Product Media | Cellulose |
| Wrap | No |
| Micron Rating | 10 |
| Outside Diameter (Bottom) | 5.12 in. |
| Collapse Pressure | 44 |
| BPVS Setting (PSI) | 24.7 |
| Outside Diameter (Top) | 5.12 in. |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Inside Diameter (Top) | 2.54 in. |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Gasket Material | Viton |
| Flow Direction | Outside-In |
| Filter Area (sq. in.) | 913 |
| Dust Holding Capacity | 36.51 grams |
| Beta Ratio 1 | 2/10 |
| Fluid Type | HH / HL / HM / HV |
MAIN FILTER MF0223203 Cross References
We have 1 alternatives for the MF0223203 by MAIN FILTER:
