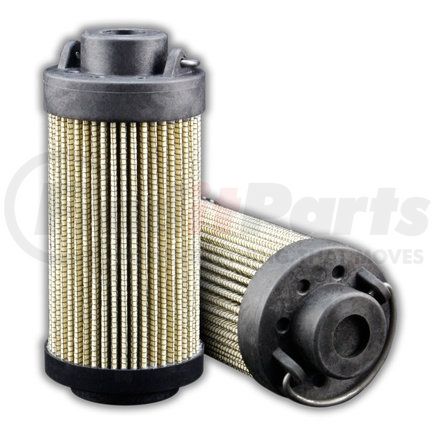

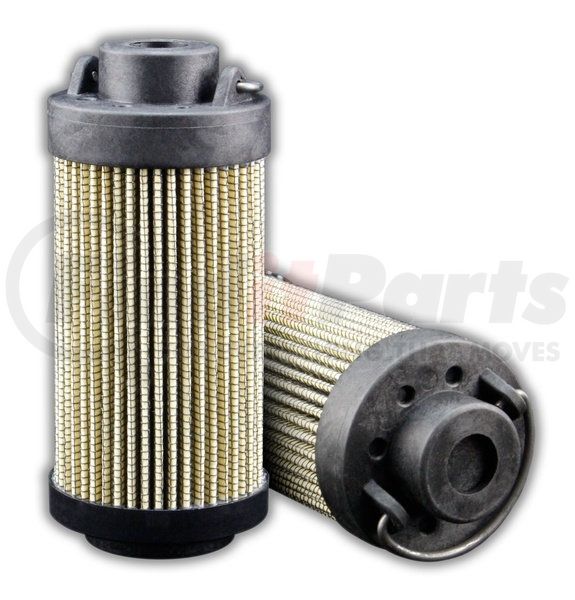

(888) 312-8812 Login SignupMAIN FILTER MF0305544 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Cellulose, Outside-In Flow
MSRP: $61.60
$5499
Save $6.61
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
MAIN FILTER MF0305544 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM FBN p/n HI104632
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0305544 replaces OEM HI104632 by FBN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 1.752 |
| Outside Diameter Bottom | 1.752 |
| Inside Diameter Bottom | 0.874 |
| BPVS Setting PSI | 44 |
| Collapse Pressure | 435 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 2.635 |
| Filter Area sq in | 66 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM FBN p/n HI104632
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0305544 replaces OEM HI104632 by FBN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM FBN p/n HI104632
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0305544 Specifications
Product Attributes
| Product Media | Cellulose |
| Micron Rating | 10 |
| Handle | Yes |
| Bypass | Yes |
| Height (in.) | 4.05 |
| Wrap | No |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Outside Diameter (Top) | 1.75 in. |
| BPVS Setting (PSI) | 43.5 |
| Collapse Pressure | 435 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Gasket Material | Viton |
| Dust Holding Capacity | 2.63 grams |
| Beta Ratio 1 | 2/10 |
| Flow Direction | Outside-In |
| Fluid Type | HH / HL / HM / HV |
| Filter Area (sq. in.) | 66 |
