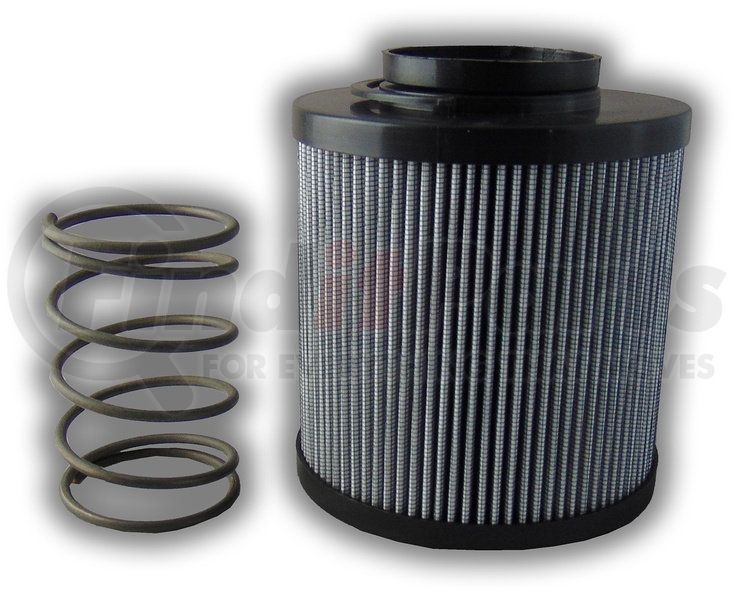

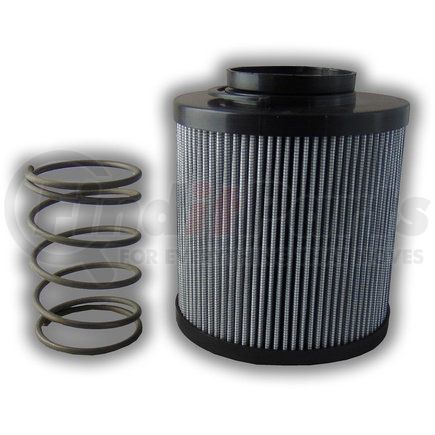

Name: Main Filter MF0617693 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0617693
Price: 68.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	5.118
Inide Diameter Top	2.028
Outside Diameter Bottom	5.118
BPVS Setting PSI	25
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	41.292
Filter Area sq in	558
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM IKRON p/n HHC45960
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0617693 replaces OEM HHC45960 by IKRON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM IKRON p/n HHC45960
Images may be a general representations of products
Built using Quality Components with strict quality control.

Features & Benefits

Interchange/replacement for OEM IKRON p/n HHC45960
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0617693 replaces OEM HHC45960 by IKRON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	5.91
Bypass	Yes
Wrap	No
Micron Rating	3
Handle	No
Product Media	Glass
Outside Diameter (Top)	5.12 in.
Inside Diameter (Top)	2.03 in.
Outside Diameter (Bottom)	5.12 in.
BPVS Setting (PSI)	24.7
Minimum Operating Temperature	-13 Deg Fahrenheit
Collapse Pressure	145
Maximum Operating Temperature	248 Deg Fahrenheit
Dust Holding Capacity	41.29 grams
Flow Direction	Outside-In
Filter Area (sq. in.)	558
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 2	1000/4.5
Beta Ratio 1	200/3

MAIN FILTER MF0617693 Cross Reference

We have 1 alternatives for the MF0617693 by MAIN FILTER:

IKRON HHC45960
