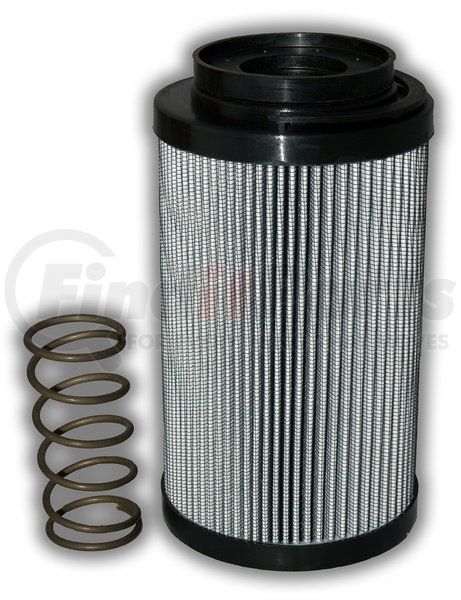

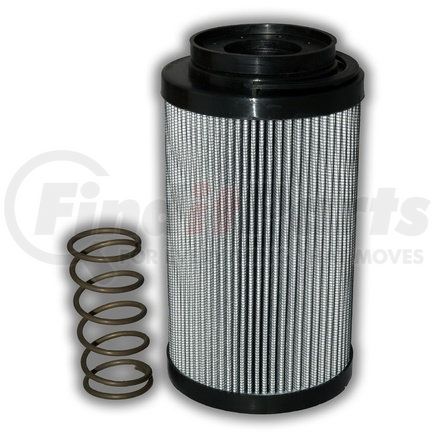

MAIN FILTER part description

Technical Specifications

Outside Diameter Top 3.898
Inide Diameter Top 1.595
Outside Diameter Bottom 3.898
BPVS Setting PSI 25
Collapse Pressure 145
Operating Temp Min F -13
Operating Temp Max F 248
Capacity gr 39.514398
Filter Area sq in 404
Flow Direction Outside-In
Gasket Material Viton
Fluid Type HH / HL / HM / HV
Beta Ratio 1 200/9.9
Beta Ratio 2 1000/12.4
Micron 1 10

Features & Benefits

  • Interchange/replacement for OEM IKRON p/n HHC30018
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0424672 replaces OEM HHC30018 by IKRON and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products
  • Interchange/replacement for OEM IKRON p/n HHC30018
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0424672 replaces OEM HHC30018 by IKRON and is compatible in fit, form and function.
  • Images may be a general representations of products

Features & Benefits

  • Interchange/replacement for OEM IKRON p/n HHC30018
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0424672 replaces OEM HHC30018 by IKRON and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Product Attributes

Bypass Yes
Handle No
Micron Rating 10
Wrap No
Product Media Glass
Height (in.) 7.09
BPVS Setting (PSI) 24.7
Outside Diameter (Top) 3.9 in.
Outside Diameter (Bottom) 3.9 in.
Minimum Operating Temperature -13 Deg Fahrenheit
Inside Diameter (Top) 1.59 in.
Maximum Operating Temperature 248 Deg Fahrenheit
Collapse Pressure 145
Dust Holding Capacity 39.51 grams
Flow Direction Outside-In
Filter Area (sq. in.) 404
Gasket Material Viton
Beta Ratio 1 200/9.9
Fluid Type HH / HL / HM / HV
Beta Ratio 2 1000/12.4

MAIN FILTER MF0424672 Cross Reference

We have 1 alternatives for the MF0424672 by MAIN FILTER:
