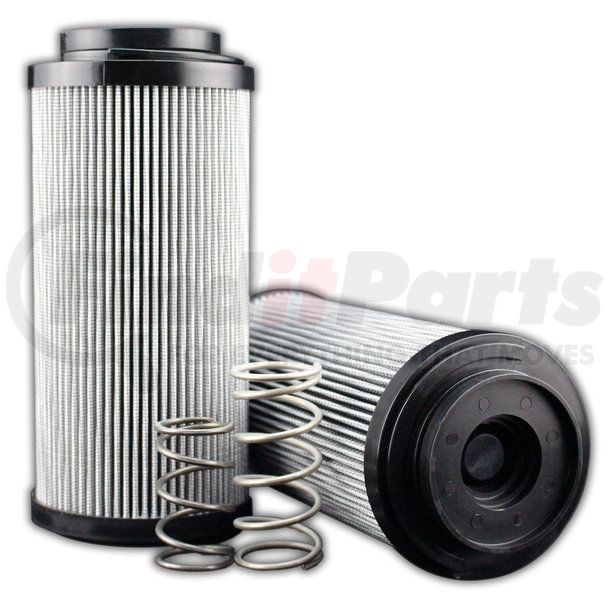

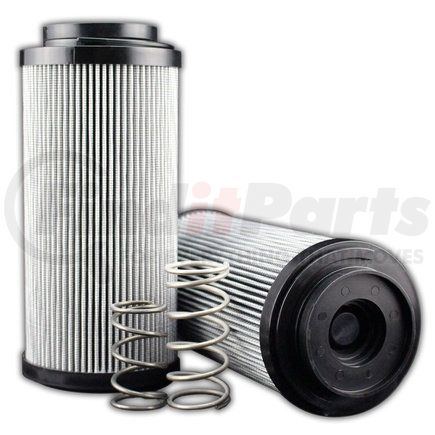

Name: Main Filter MF0617678 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
SKU: mf0617678
Price: 64.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.898
Inide Diameter Top	1.595
Outside Diameter Bottom	3.898
BPVS Setting PSI	25
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	49.4536955
Filter Area sq in	505
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10

Features & Benefits

Interchange/replacement for OEM IKRON p/n HHC10206
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0617678 replaces OEM HHC10206 by IKRON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Built using Quality Components with strict quality control.
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

Features & Benefits

Interchange/replacement for OEM IKRON p/n HHC10206
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0617678 replaces OEM HHC10206 by IKRON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Bypass	Yes
Handle	No
Product Media	Glass
Height (in.)	8.62
Micron Rating	10
Wrap	No
Minimum Operating Temperature	-13 Deg Fahrenheit
Maximum Operating Temperature	248 Deg Fahrenheit
Outside Diameter (Top)	3.9 in.
Inside Diameter (Top)	1.59 in.
Outside Diameter (Bottom)	3.9 in.
BPVS Setting (PSI)	24.7
Collapse Pressure	145
Gasket Material	Viton
Filter Area (sq. in.)	505
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Flow Direction	Outside-In
Dust Holding Capacity	49.45 grams

MAIN FILTER MF0617678 Cross Reference

We have 1 alternatives for the MF0617678 by MAIN FILTER:

IKRON HHC10206
