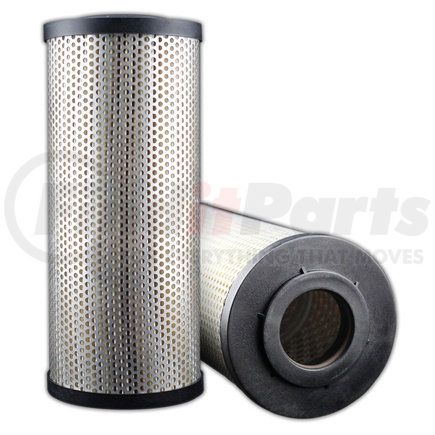

(888) 312-8812 Login SignupMAIN FILTER MF0308179 Aftermarket Replacement Hydraulic Filter, 25 Micron Cellulose, Viton Seal, 9.25 in. Height
$3049
Limited availability at this price!
In Stock
Get as soon as Wednesday, Nov 11
MAIN FILTER MF0308179 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 25 Micron Cellulose, 9.25 in. Height
Features & Benefits
- Interchange/replacement for OEM FLEETGUARD p/n HF6197
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0308179 replaces OEM HF6197 by FLEETGUARD and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.898 |
| Inide Diameter Top | 1.654 |
| Outside Diameter Bottom | 3.898 |
| Inside Diameter Bottom | 1.654 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/25 |
| Micron 1 | 25 |
MAIN FILTER MF0308179 Specifications
Product Attributes
| Product Media | Cellulose |
| Handle | No |
| Wrap | Yes |
| Inside Diameter (Top) | 1.65 in. |
| Outside Diameter (Bottom) | 3.9 in. |
| Height (in.) | 9.25 |
| Flow Direction | Outside In |
| Gasket Material | Viton |
| Outside Diameter (Top) | 3.9 in. |
| Beta Ratio 1 | 2/25 |
| Bypass | No |
| Minimum Operating Temperature | -13-deg. F |
| Inside Diameter (Bottom) | 1.65 in. |
| Fluid Type | HL, HM, HV, HH |
| Micron Rating | 25 |
| Collapse Pressure | 145 |
| Maximum Operating Temperature | 248-deg. F |
| Bottom Inside Diameter | 1.654 in. |
| Bottom Outside Diameter | 3.898 in. |
| Cracking Pressure | 145 psi |
| Filter Media | Cellulose |
| Filter Rating | 25 micron |
| Height | 9 1/4 in. |
| Flow Type | Outside In |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Diameter | 1.654 in. |
| Top Outside Diameter | 3.898 in. |
MAIN FILTER MF0308179 Cross References
| Brand | Part Number |
|---|---|
| FLEETGUARD | HF6197 |
