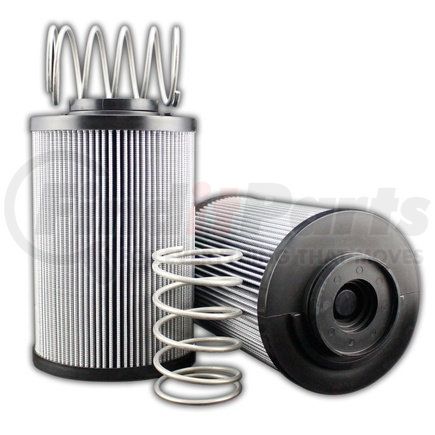

Name: Main Filter MF0693647 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
SKU: mf0693647
Price: 83.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	5.118
Inide Diameter Top	2.028
Outside Diameter Bottom	5.118
BPVS Setting PSI	25
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	80.4096755
Filter Area sq in	821
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF35221
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0693647 replaces OEM HF35221 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All of our elements are manufactured following ISO specifications.
Compatible with OEM filter in fit, form and function

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF35221
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0693647 replaces OEM HF35221 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Bypass	Yes
Height (in.)	8.23
Handle	No
Micron Rating	10
Wrap	No
Product Media	Glass
Minimum Operating Temperature	-13 Deg Fahrenheit
BPVS Setting (PSI)	24.7
Outside Diameter (Bottom)	5.12 in.
Inside Diameter (Top)	2.03 in.
Outside Diameter (Top)	5.12 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Collapse Pressure	145
Beta Ratio 2	1000/12.4
Beta Ratio 1	200/9.9
Dust Holding Capacity	80.41 grams
Gasket Material	Viton
Filter Area (sq. in.)	821
Flow Direction	Outside-In
Fluid Type	HH / HL / HM / HV

Part Interchanges

Fleetguard HF35221

MAIN FILTER MF0693647 Cross Reference

We have 1 alternatives for the MF0693647 by MAIN FILTER:

FLEETGUARD HF35221
