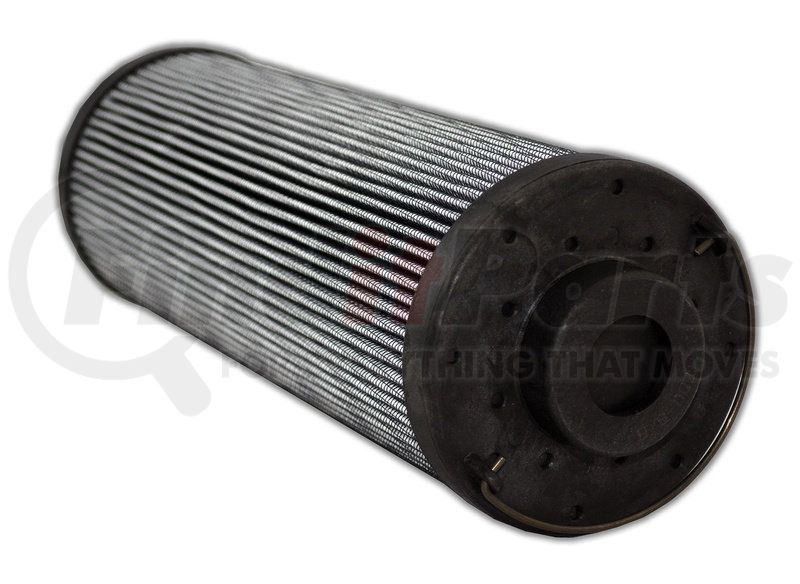

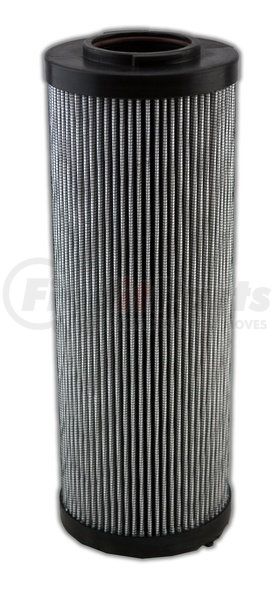

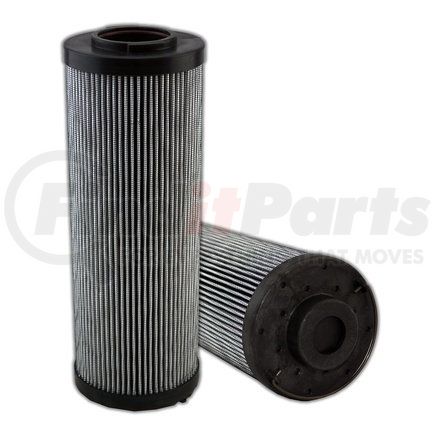

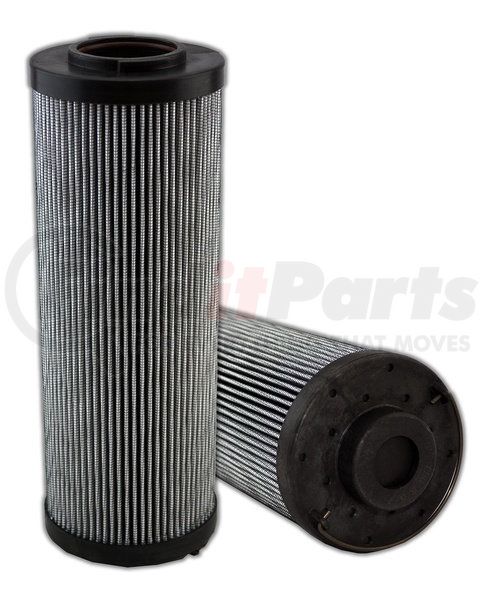

Name: Main Filter MF0301857 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
SKU: mf0301857
Price: 108.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.721
Outside Diameter Bottom	3.721
Inside Diameter Bottom	1.898
BPVS Setting PSI	44
Collapse Pressure	435
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	87.6934355
Filter Area sq in	896
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10

Features & Benefits

Interchange/replacement for OEM BUSSE p/n HE054
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0301857 replaces OEM HE054 by BUSSE and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Buy hydraulic filters direct from the manufacturer
Images may be a general representations of products
Interchange/replacement for OEM BUSSE p/n HE054
Built using Quality Components with strict quality control.
Images may be a general representations of products
Built using Quality Components with strict quality control.

Features & Benefits

Interchange/replacement for OEM BUSSE p/n HE054
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0301857 replaces OEM HE054 by BUSSE and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Handle	Yes
Product Media	Glass
Wrap	No
Bypass	Yes
Height (in.)	10.82
Micron Rating	10
Outside Diameter (Top)	3.72 in.
BPVS Setting (PSI)	43.5
Minimum Operating Temperature	-13 Deg Fahrenheit
Collapse Pressure	435
Maximum Operating Temperature	248 Deg Fahrenheit
Dust Holding Capacity	87.69 grams
Beta Ratio 1	200/9.9
Fluid Type	HH / HL / HM / HV
Beta Ratio 2	1000/12.4
Flow Direction	Outside-In
Gasket Material	Viton
Filter Area (sq. in.)	896

MAIN FILTER MF0301857 Cross Reference

We have 1 alternatives for the MF0301857 by MAIN FILTER:

BUSSE HE054
