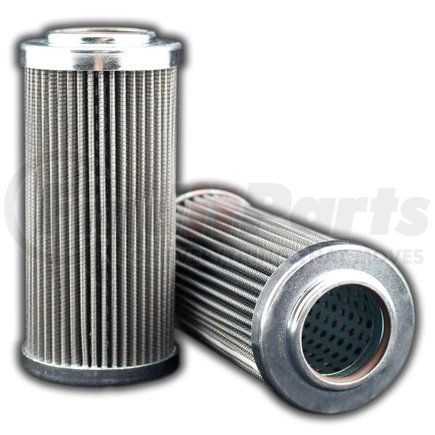

MAIN FILTER part description

Technical Specifications

Outside Diameter Top 2.362
Inide Diameter Top 1.347
Outside Diameter Bottom 2.362
Collapse Pressure 435
Operating Temp Min F -13
Operating Temp Max F 248
Filter Area sq in 234
Flow Direction Outside-In
Gasket Material Viton
Fluid Type HH / HL / HM / HV
Micron 1 10

Features & Benefits

  • Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n H240D100W
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0343368 replaces OEM H240D100W by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products
  • Images may be a general representations of products
  • Compatible with OEM filter in fit, form and function
  • Built using Quality Components with strict quality control.
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

Features & Benefits

  • Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n H240D100W
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0343368 replaces OEM H240D100W by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Product Attributes

Bypass No
Handle No
Micron Rating 10
Maximum Operating Temperature 248 Deg Fahrenheit
Minimum Operating Temperature -13 Deg Fahrenheit
Filter Area (sq. in.) 234
Outside Diameter (Bottom) 2.36 in.
Flow Direction Outside-In
Gasket Material Viton
Collapse Pressure 435
Fluid Type HH / HL / HM / HV
Height (in.) 7.32
Inside Diameter (Top) 1.35 in.
Wrap No
Outside Diameter (Top) 2.36 in.
Product Media Wire Mesh

Part Interchanges

MAIN FILTER MF0343368 Cross Reference

We have 1 alternatives for the MF0343368 by MAIN FILTER:
