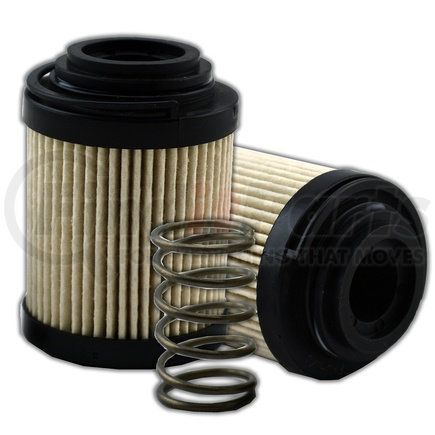

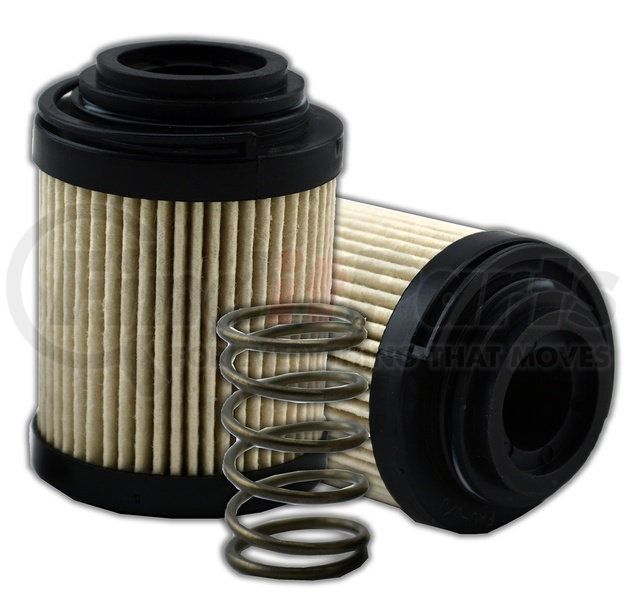

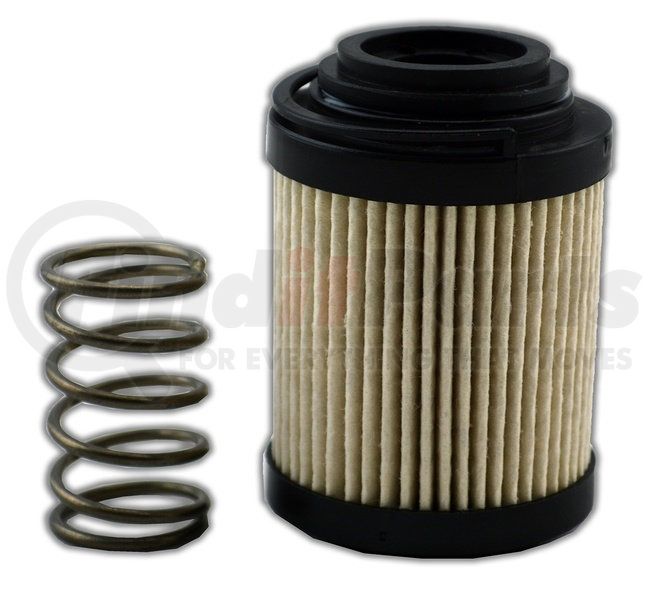

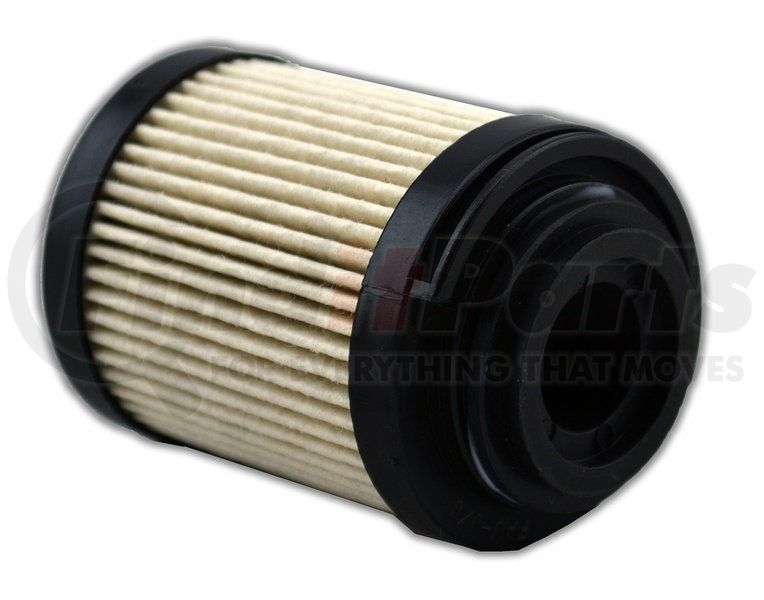

Name: Main Filter MF0230254 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Cellulose, Outside-In Flow
SKU: mf0230254
Price: 21.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	2.047
Inide Diameter Top	0.965
Outside Diameter Bottom	2.047
BPVS Setting PSI	25
Collapse Pressure	44
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	2.4304
Filter Area sq in	61
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/10
Micron 1	10

Features & Benefits

Interchange/replacement for OEM FBN p/n FXRA3M10
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0230254 replaces OEM FXRA3M10 by FBN and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Images may be a general representations of products
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Compatible with OEM filter in fit, form and function

Features & Benefits

Interchange/replacement for OEM FBN p/n FXRA3M10
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0230254 replaces OEM FXRA3M10 by FBN and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Handle	Yes
Micron Rating	10
Wrap	No
Height (in.)	2.95
Bypass	Yes
Product Media	Cellulose
Outside Diameter (Bottom)	2.05 in.
Collapse Pressure	44
BPVS Setting (PSI)	24.7
Minimum Operating Temperature	-13 Deg Fahrenheit
Maximum Operating Temperature	248 Deg Fahrenheit
Outside Diameter (Top)	2.05 in.
Inside Diameter (Top)	0.97 in.
Flow Direction	Outside-In
Dust Holding Capacity	2.43 grams
Filter Area (sq. in.)	61
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/10

MAIN FILTER MF0230254 Cross Reference

We have 1 alternatives for the MF0230254 by MAIN FILTER:

FBN FXRA3M10
