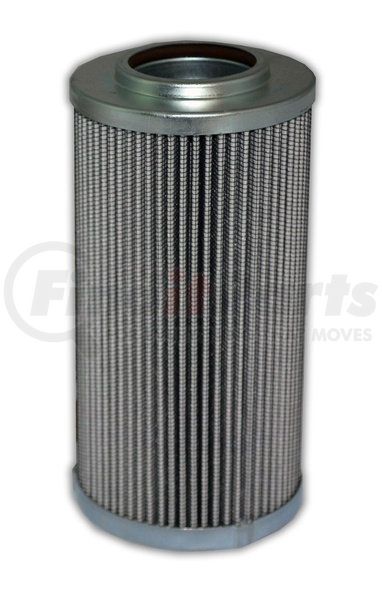

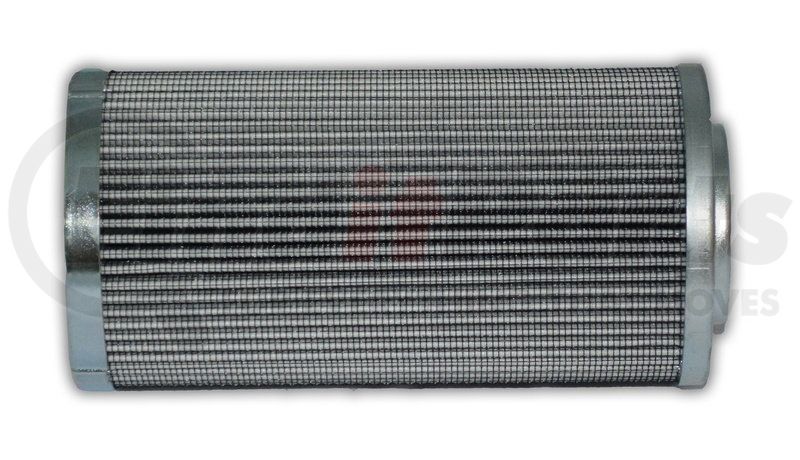

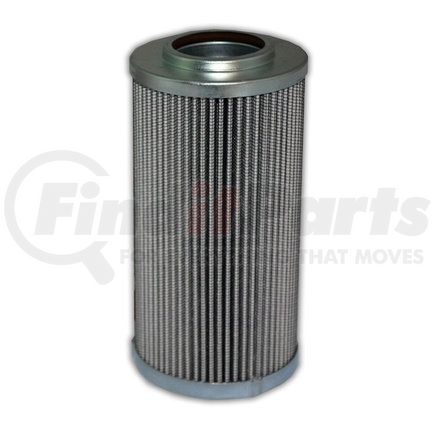

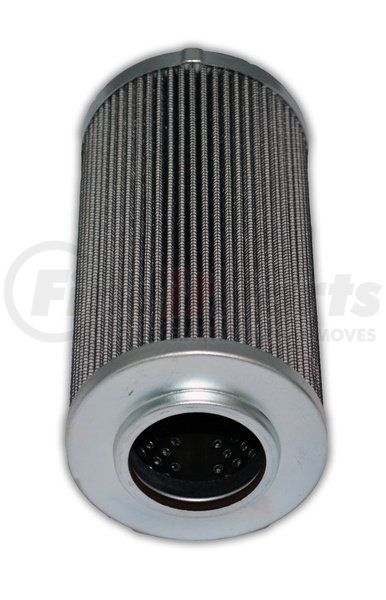

Name: Main Filter MF0698046 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Outside-In Flow
SKU: mf0698046
Price: 57.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.071
Inide Diameter Top	1.595
Outside Diameter Bottom	3.071
Collapse Pressure	305
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	35.284665
Filter Area sq in	393
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6
Micron 1	25

Features & Benefits

Interchange/replacement for OEM FRAM p/n FXD160G25A
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0698046 replaces OEM FXD160G25A by FRAM and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM FRAM p/n FXD160G25A
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0698046 replaces OEM FXD160G25A by FRAM and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Gasket Material	Viton
Handle	No
Fluid Type	HH / HL / HM / HV
Dust Holding Capacity	35.28 grams
Filter Area (sq. in.)	393
Bypass	No
Micron Rating	20
Minimum Operating Temperature	-13 Deg Fahrenheit
Beta Ratio 1	200/20.7
Flow Direction	Outside-In
Inside Diameter (Top)	1.6 in.
Collapse Pressure	305
Height (in.)	6.18
Beta Ratio 2	1000/26.6
Product Media	Glass
Outside Diameter (Top)	3.07 in.
Outside Diameter (Bottom)	3.07 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Wrap	No

Part Interchanges

FRAM FXD160G25A

MAIN FILTER MF0698046 Cross Reference

We have 1 alternatives for the MF0698046 by MAIN FILTER:

FRAM FXD160G25A
