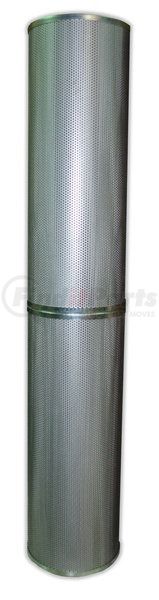

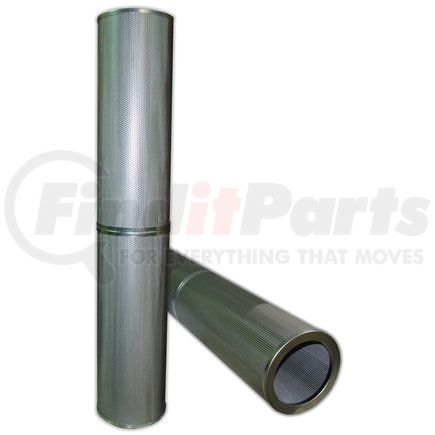

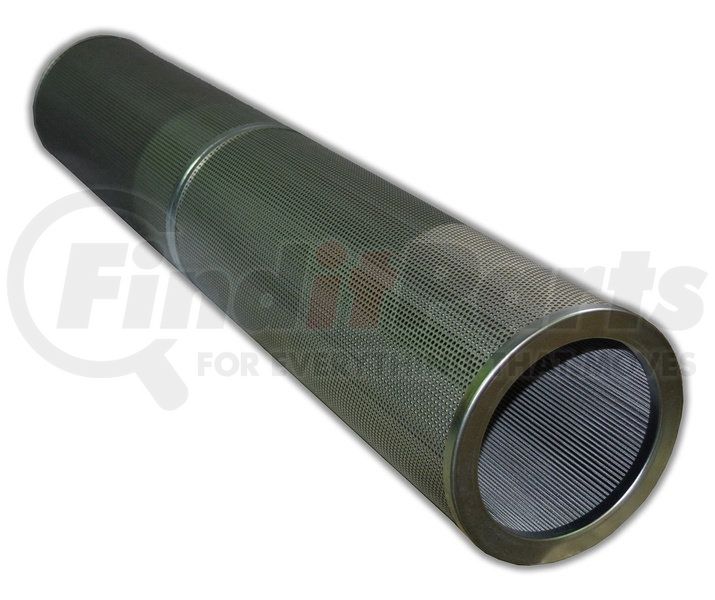

(888) 312-8812 Login SignupMAIN FILTER MF0428425 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Inside-Out Flow
Tap to view 2 more
SHIPS MONDAY
MSRP: $404.03
$30449
Save $99.54
Limited availability at this price!
In Stock
Get it by Friday, Jan 16
MAIN FILTER MF0428425 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM VICKERS p/n FT8504A10A
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0428425 replaces OEM FT8504A10A by VICKERS and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 7.953 |
| Inide Diameter Top | 6.181 |
| Outside Diameter Bottom | 7.953 |
| Inside Diameter Bottom | 0.559 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 735.538364 |
| Filter Area sq in | 7513 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/9.9 |
| Beta Ratio 2 | 1000/12.4 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM VICKERS p/n FT8504A10A
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0428425 replaces OEM FT8504A10A by VICKERS and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Main Filter MF0428425 replaces OEM FT8504A10A by VICKERS and is compatible in fit, form and function.
MAIN FILTER MF0428425 Specifications
Product Attributes
| Bypass | No |
| Beta Ratio 2 | 1000/12.4 |
| Beta Ratio 1 | 200/9.9 |
| Collapse Pressure | 145 |
| Gasket Material | Buna |
| Micron Rating | 10 |
| Height (in.) | 42.91 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Inside Diameter (Top) | 6.18 in. |
| Outside Diameter (Top) | 7.95 in. |
| Filter Area (sq. in.) | 7513 |
| Fluid Type | HH / HL / HM / HV |
| Flow Direction | Inside-Out |
| Handle | No |
| Inside Diameter (Bottom) | 0.56 in. |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Outside Diameter (Bottom) | 7.95 in. |
| Product Media | Glass |
| Wrap | Yes |
| Dust Holding Capacity | 735.54 grams |
MAIN FILTER MF0428425 Cross References
| Brand | Part Number |
|---|---|
| VICKERS | FT8504A10A |
