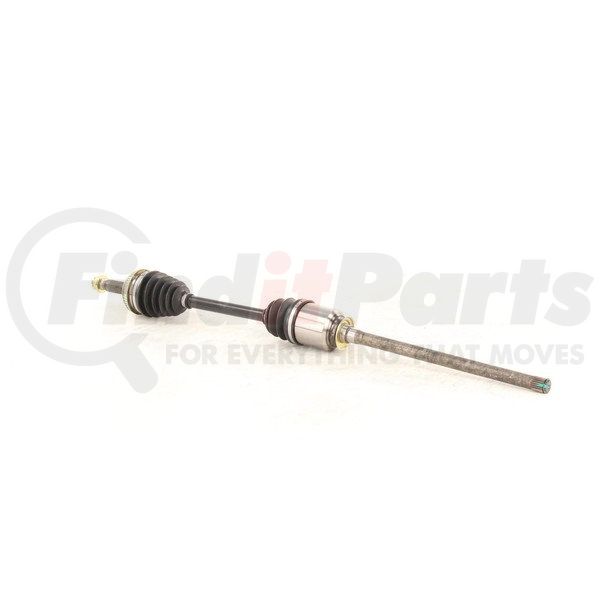

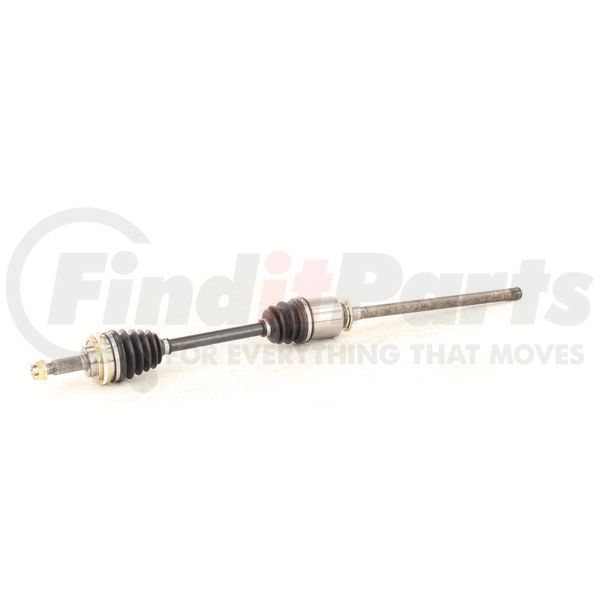

TrakMotive TO8121 - CV Axle Shaft
- Part Number
- TO8121
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$12349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .83 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1.17 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.98 |
| Overall Compressed Length (mm) | 990 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084081216 |
Part Interchanges
- ARC 80-5675
- EMPI 80-6404
- Mevotech CV8998
- Carquest 411362
- Carquest 801362
- USA Industries 7097029
- USA Industries AX-97159
- Prestige Autotech 2020
- American Remanufactured 40-19702S
- Diversified Shafts Solutions 671N
- Drive Tech America TO-9702A
- Fenwick CV2083
- CARDONE Reman 60-5196
- CARDONE Reman 66-5196
- IMC 40730002
- Carquest Premium AC NCV69568
- OEM Part Number 4341048010
- ODM TO-8-8826A
- TrakMotive TO-8121
- ProTech TO20514
- 411362
- NCV69568
- 90604
- MX-19702S
- 329121
Fits Vehicles
- Lexus RX300 (1999-2003)
