Name: Delphi TA5922 Tie Rod End
SKU: ta5922
Price: 27.99 USD
Availability: InStock

DELPHI part description

Product Description

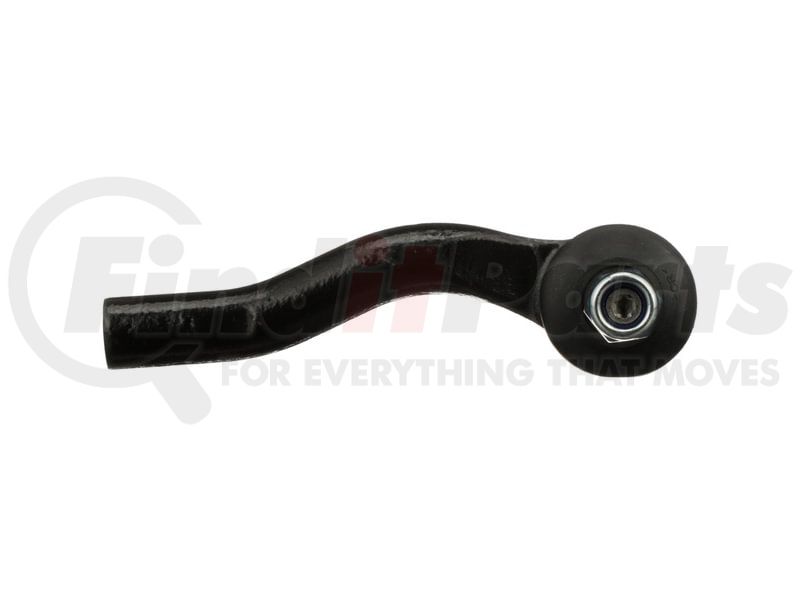

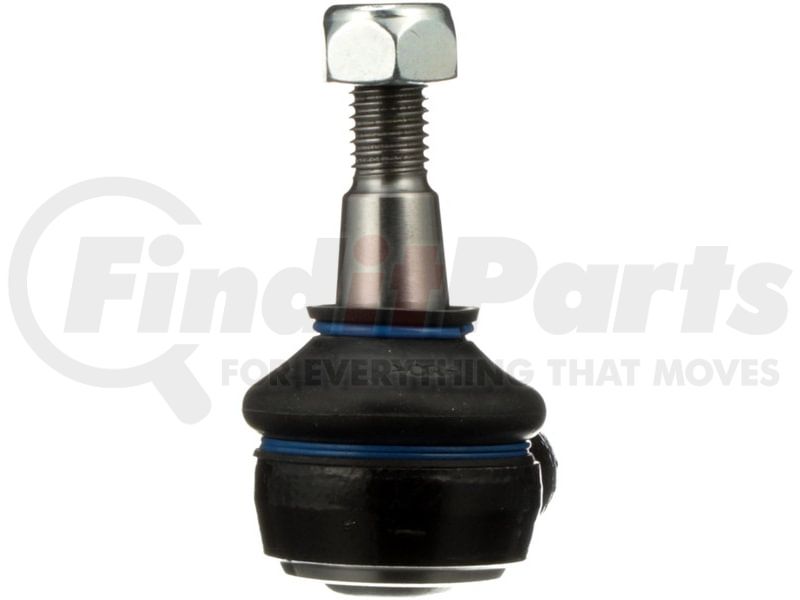

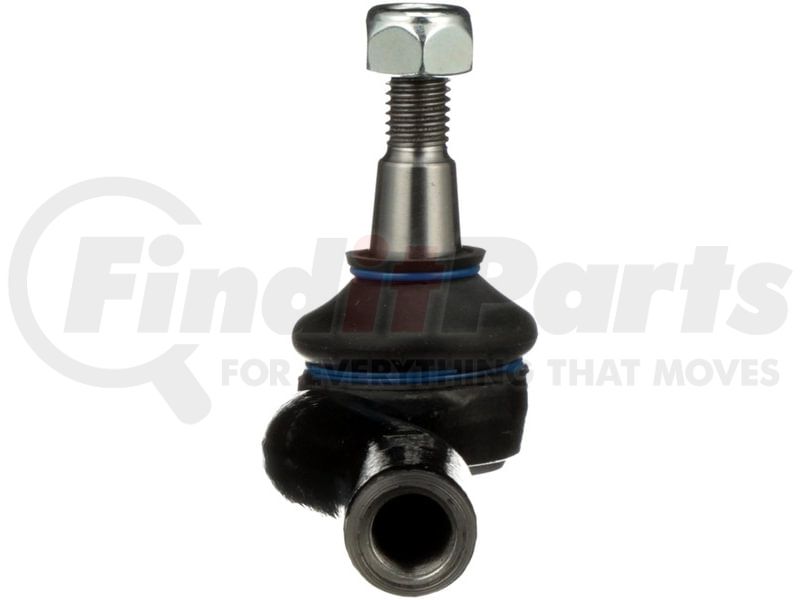

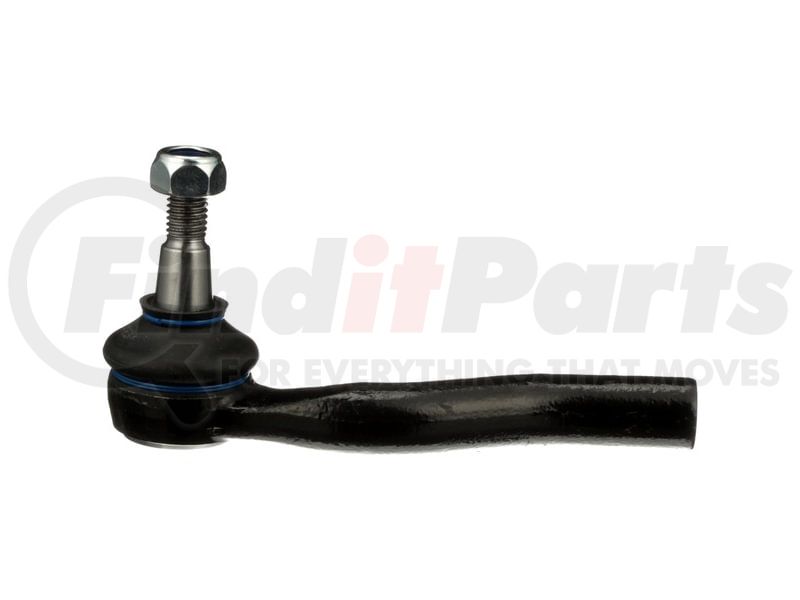

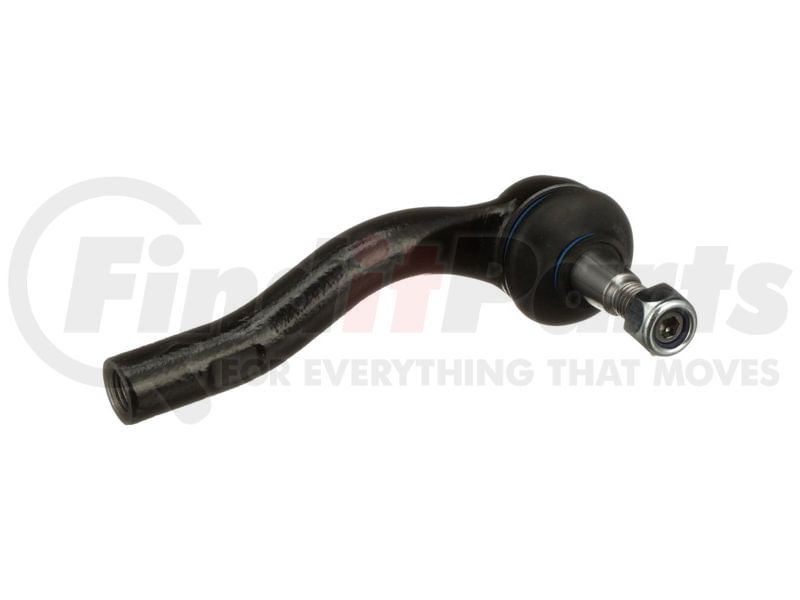

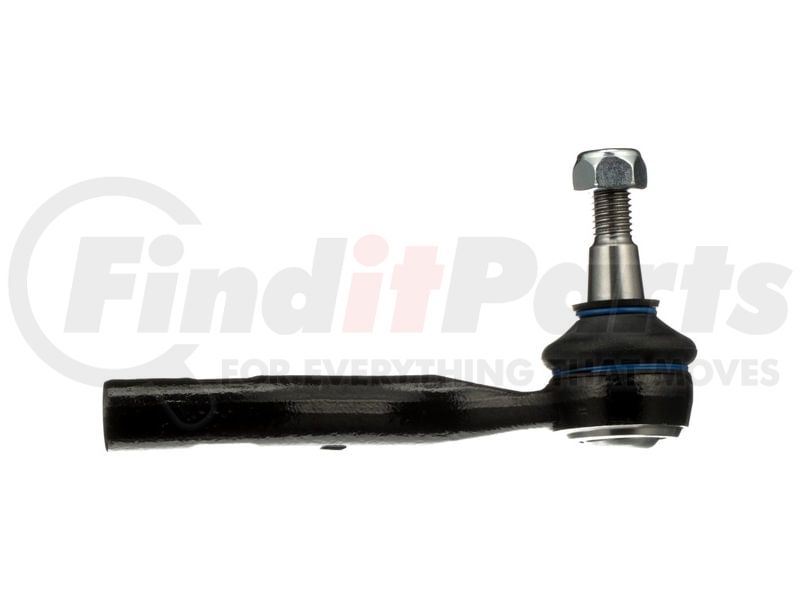

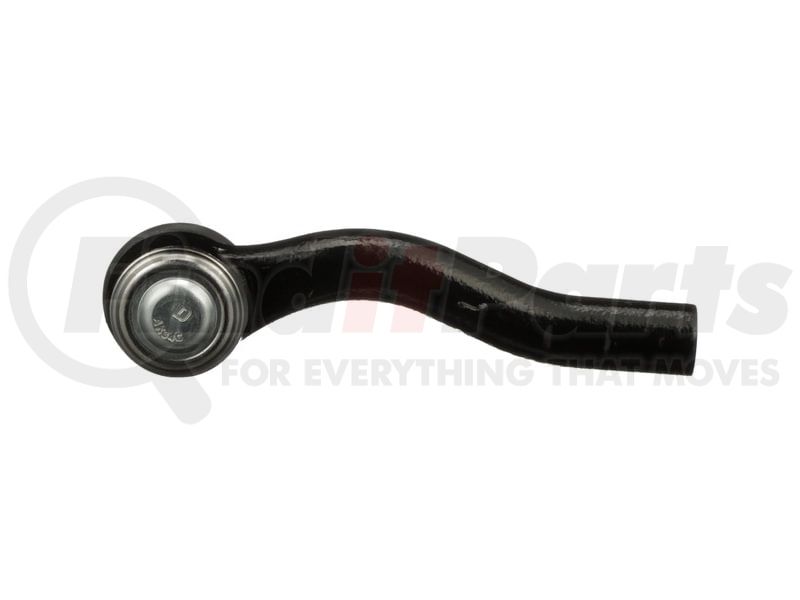

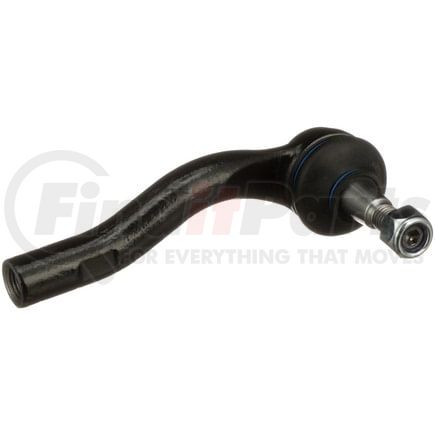

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	144.50 MM
Color	Black
Shank Length	16.50 MM
End 1 Gender	Male
End 2 Gender	Female
Stud Length	16.50 MM
Finish	Painted
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	14.00 MM
Grade Type	Standard
Housing Material	Steel
Tube Diameter	21.00 MM
Adjustable	No
Greasable	No
Boot Color	Black
Cone Outside Diameter	16.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.75 MM
Length Stud Center to End	67.50 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	12.00 MM
Shank Length	0.650 IN
Stud Length	0.650 IN
End 2 Thread Diameter	0.551 IN
36	0.830 IN
662	0.650 IN
Length Stud Center to End	2.657 IN
End 1 Thread Diameter	0.472 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708947550
Country of Origin (Primary)	CN
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604352816
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Chevrolet Caprice (2011-2014)
Pontiac G8 (2008-2009)
