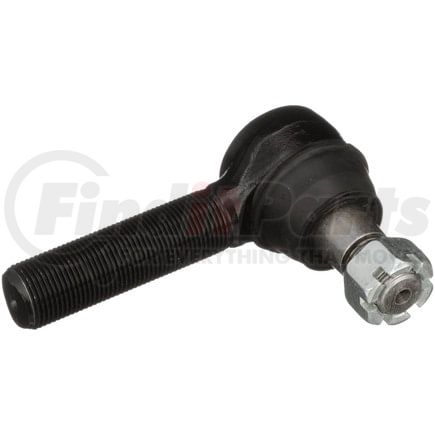

Delphi TA6362 - Tie Rod End
$8449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 138.43 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 57.4 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.117 IN |
| End 2 Thread Diameter | 28.38 MM |
| Height | 121.50 MM |
| Housing Material | Steel |
| Tube Diameter | 1.125 IN |
| Tube Diameter | 28.38 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 3.17 lb |
| Cone Outside Diameter | 27.98 MM |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 5.441 IN |
| Length - Stud Center to End | 138.20 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 14 |
| End 1 Thread Diameter | 0.875 IN |
| End 1 Thread Diameter | 22.23 MM |
| Shank Length | 27.98 MM |
| Stud Length | 27.98 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 1.102 IN |
| Stud Length | 1.102 IN |
| Cone Outside Diameter | 1.102 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604357378 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- GMC C8500 Topkick (2003-2009)
- Chevrolet T8500 (2004-2009)
- Chevrolet C8500 (2003-2009)
- GMC T7500 (2004-2008)
- Chevrolet T6500 (2004-2009)
- GMC T6500 (2004-2009)
- Chevrolet T7500 (2004-2009)
- GMC C7500 Topkick (2003-2009)
- GMC C6500 Topkick (2003-2009)
- Chevrolet C7500 Kodiak (2003-2009)
- Chevrolet C6500 Kodiak (2003-2009)
