DYNAMIC FRICTION COMPANY part description

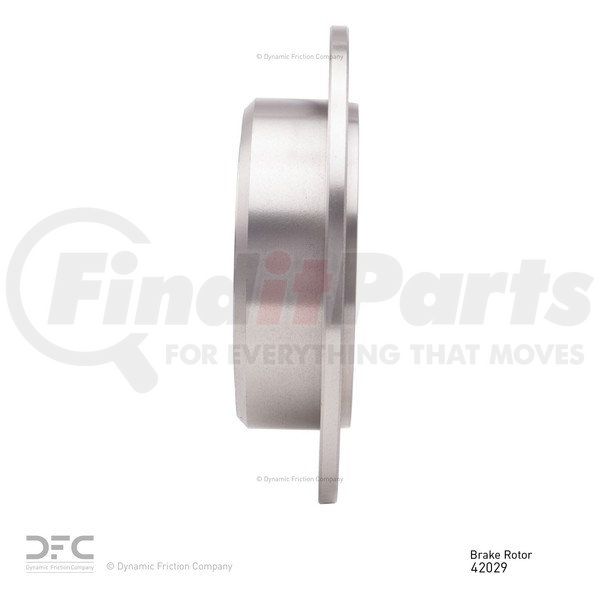

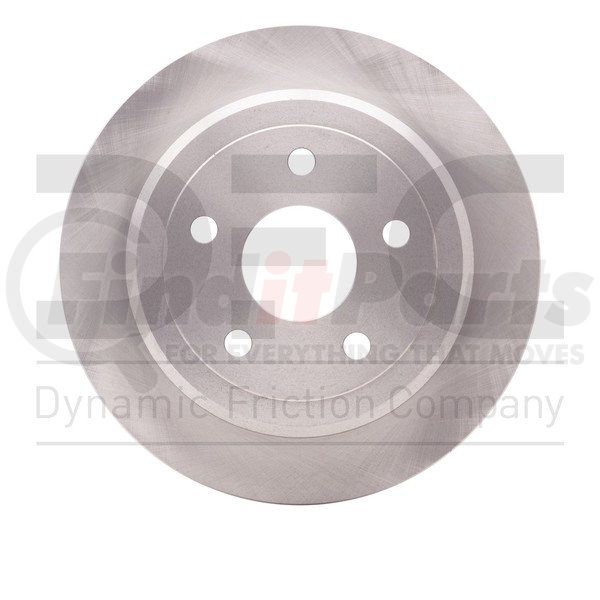

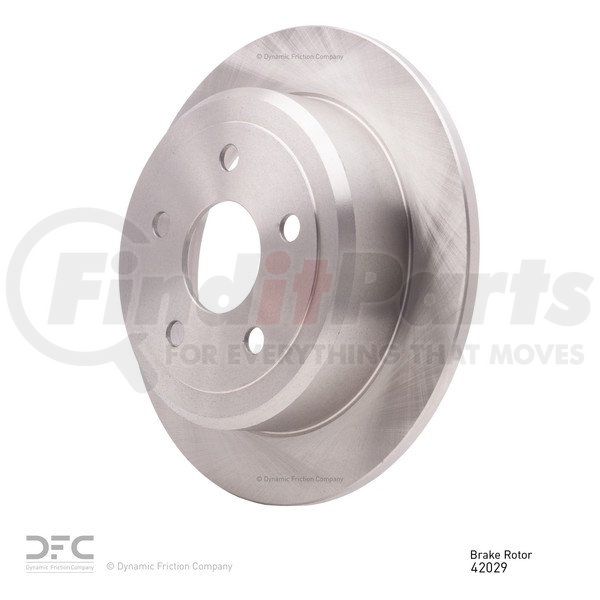

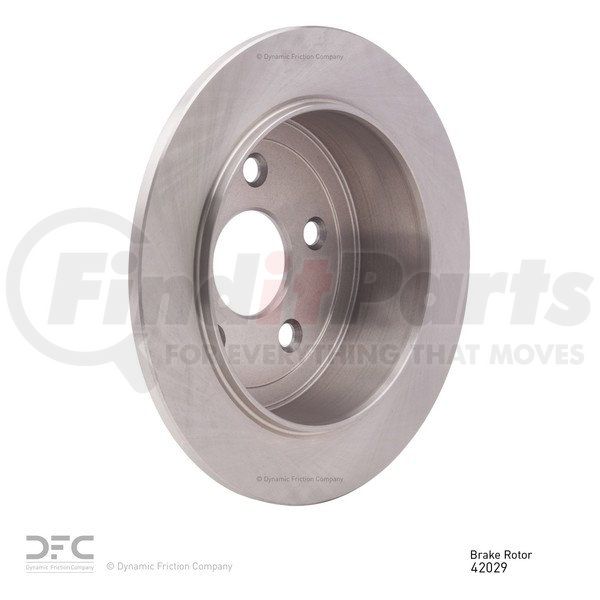

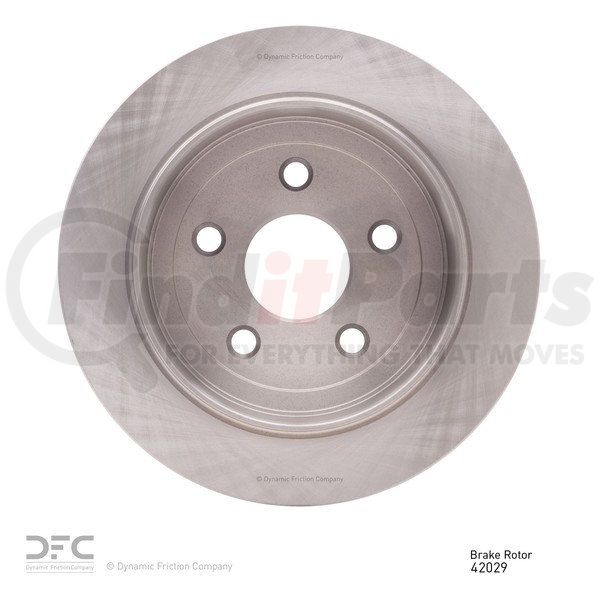

Disc Brake Rotor

Product Description

Disc Brake Rotor

Features & Benefits

  • Quality Tested To Ensure Long-Lasting Performance
  • 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • New In Box, Ready To Install, No Modifications Required
  • New In Box, Ready To Install, No Modifications Required
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • CNC-Machined To The Tightest Tolerances
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops

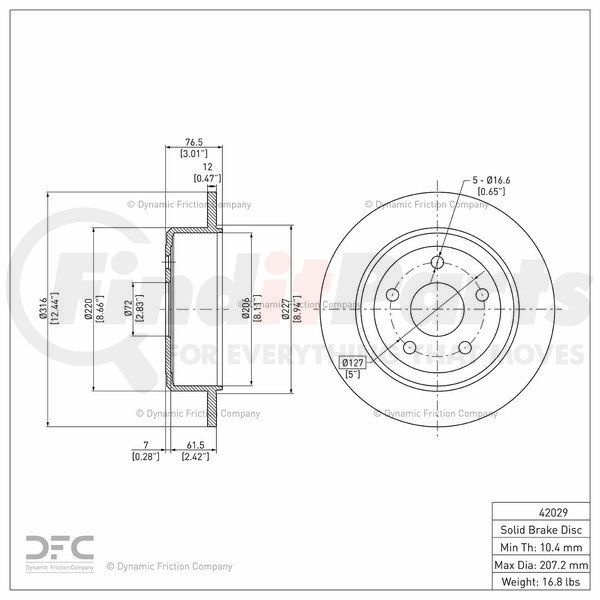

Product Attributes

Outside Diameter 316 MM
Solid Or Vented Type Rotor Solid
Inside Diameter 72.1 MM
Height 76.5 MM
Bolt Hole Quantity 5 EA
Discard Thickness 10.4 MM
Nominal Thickness 12 MM
Bolt Hole Diameter 16.6 MM
Rust Resistant Coating Yes
Hat Finish Rust Preventative
Overall Height 76.5 MM
Center Hole Diameter 72.1 MM
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Non-Directional
Surface Type Smooth
Stud/Lug Hole Diameter 16.6 MM
Stud/Lug Hole Circle Diameter 127 MM
Rust Resistant Coating Yes
Hat Finish Rust Preventative
Overall Height 76.5 MM
Center Hole Diameter 72.1 MM
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Non-Directional
Surface Type Smooth
Stud/Lug Hole Diameter 16.6 MM
Stud/Lug Hole Circle Diameter 127 MM

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 87083050
Harmonized Tariff Code (Schedule B) 87083050
UPC 00190920029349

Fits Vehicles

  • Jeep Wrangler JK (2018)
  • Jeep Wrangler (2007-2018)
