RAYBESTOS 682614 - Brake Parts Inc Raybestos Specialty - Truck Coated Disc Brake Rotor
$8299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

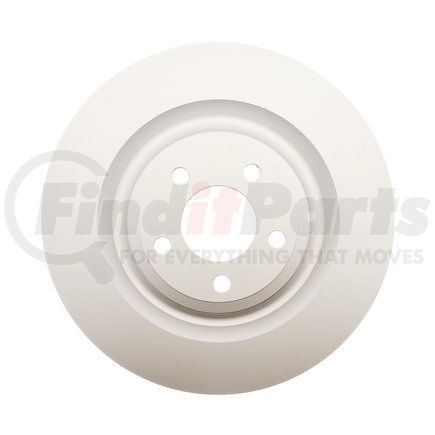

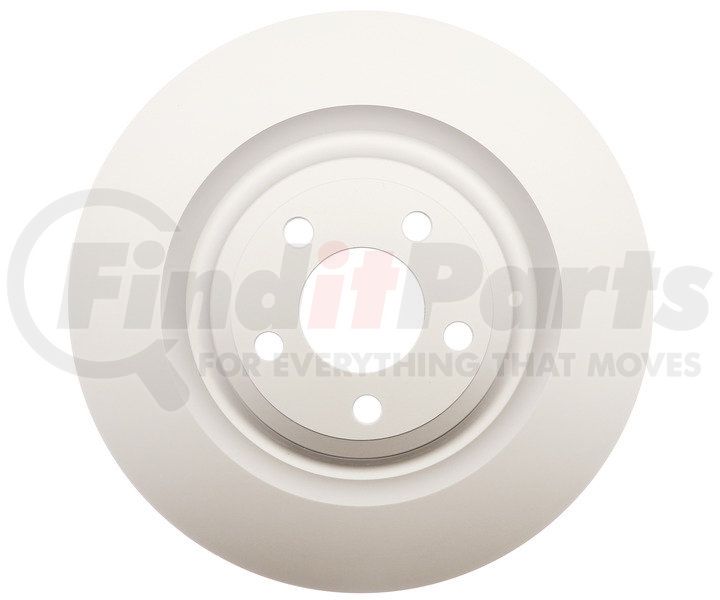

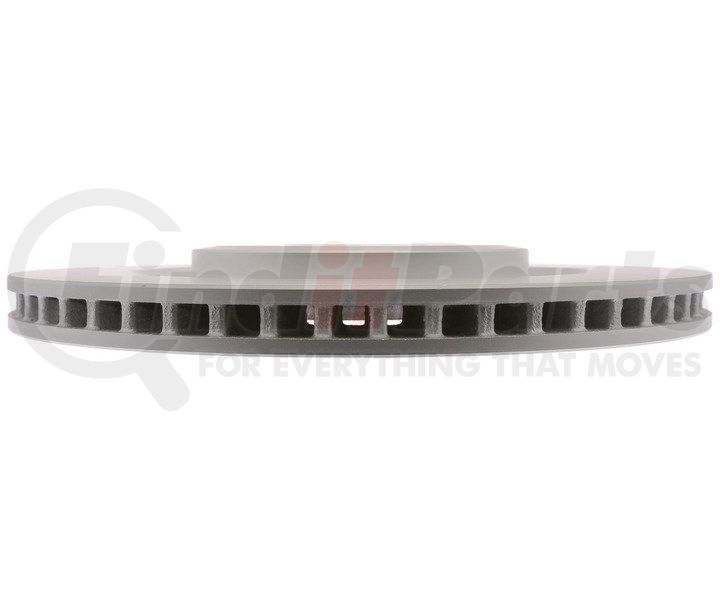

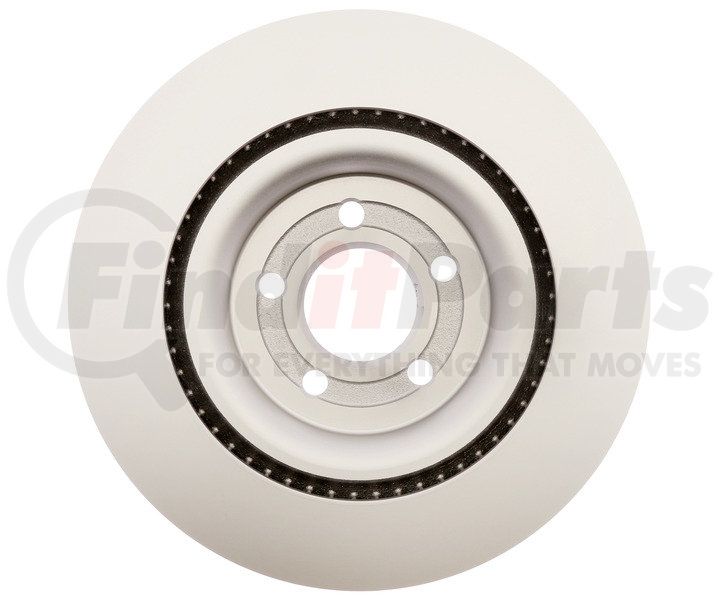

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2022-2020 Ford Explorer Rear, 2022-2020 Ford Police Interceptor Utility Rear, 2023-2020 Lincoln Aviator Rear
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.799 IN |
| Center Hole Diameter | 71.1 MM |
| Construction | Full Cast |
| 9565 | Conventional |
| 9540 | Non-Directional |
| Discard Thickness | 0.965 IN |
| Discard Thickness | 24.5 MM |
| Grade Type | Regular |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.319 IN |
| Inside Diameter | 236.7 MM |
| Material | Cast Iron |
| Misc. Holes | 5 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.62 IN |
| Mounting Bolt Hole Diameter | 15.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 1.543 IN |
| Overall Height | 39.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213330939 |
Part Interchanges
RAYBESTOS 682614 Cross Reference
We have 4 alternatives for the 682614 by RAYBESTOS:
Fits Vehicles
- Ford Police Interceptor Utility (2020-2022)
- Lincoln Aviator (2020-2022)
- Ford Explorer (2020-2022)
