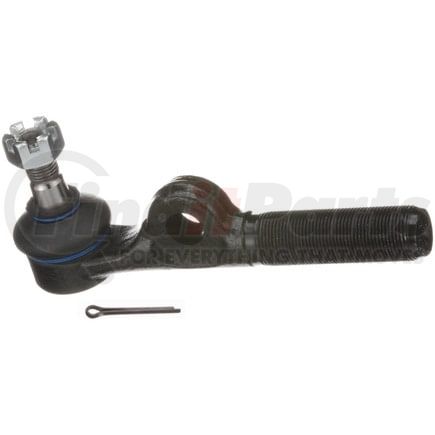

DELPHI TA6294 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA6294 Specifications
Product Attributes
| Position(s) | Rear Right |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 70.00 MM |
| Housing Material | Steel |
| Adjustable | Yes |
| Greaseable | No |
| Weight | 1.45 lb |
| Cone Outside Diameter | 0.577 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 6.339 IN |
| Length - Stud Center to End | 161.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 23.00 MM |
| Shank Length | 0.577 IN |
| Stud Length | 14.66 MM |
| Grade Type | Standard Replacement |
| Boot Color | Black |
| Cone Outside Diameter | 14.66 MM |
| Grade | Premium |
| Shank Length | 14.66 MM |
| Stud Length | 0.577 IN |
| End 2 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 0.906 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604344125 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA6294 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4232 |
| MOOG | ES801005 |
| N/A | EV801011, 532220 |
| Toyota | 4504669115, 4504669116, 4504669155 |
DELPHI TA6294 Fits Vehicles
- Toyota Land Cruiser (1981-1989)
