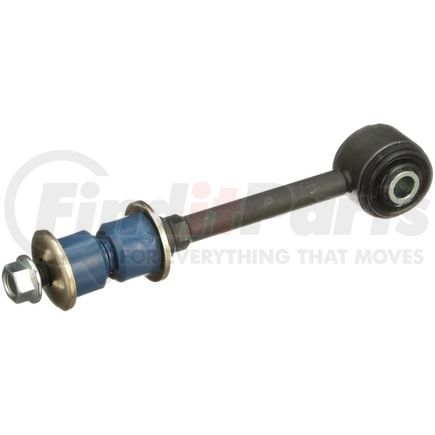

DELPHI TC6040 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6040 Specifications
Product Attributes
| Position(s) | Front |
| Item Grade | Standard Replacement |
| Material | Steel |
| Bushing Outside Diameter | 37.00 MM |
| Bushing Outside Diameter | 1.460 IN |
| Bushing Color | Black |
| Length | 10.650 IN |
| Length | 270.50 MM |
| End 1 Type | Bushing |
| End 2 Type | Ball Joint |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Sleeve Inside Diameter | 0.56 IN |
| Sleeve Inside Diameter | 14.3 MM |
| Sleeve Length | 1.97 IN |
| Sleeve Length | 50 MM |
| Bolt Thread Size | 92.5 |
| Width | 1.99 IN |
| Width | 50 MM |
| Washers Included | Yes |
| Height | 50.00 MM |
| Height | 1.970 IN |
| Grade Type | Standard Replacement |
| Bolts Included | Yes |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 0.550 IN |
| Bolt Head Diameter | 14.00 MM |
| Weight | 1.87 lb |
| Bearing Material | Polyoxymethylene (POM) |
| Bushing Material | Rubber |
| Wrench Size | 13mm |
| Bolt Length | 270.50 MM |
| Bolt Length | 10.650 IN |
| Bolt Thread Diameter | 0.550 IN |
| Bolt Thread Diameter | 14.00 MM |
| Distance Between Mounting Holes | 245.60 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 0.590 IN |
| Bushing Inside Diameter | 15.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604335789 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC6040 Cross References
DELPHI TC6040 Fits Vehicles
- Ford F-350 Super Duty (2005-2007)
- Ford F-250 Super Duty (2005-2007)
- Ford F-450 Super Duty (2005-2007)
- Ford F-550 Super Duty (2005-2007)
