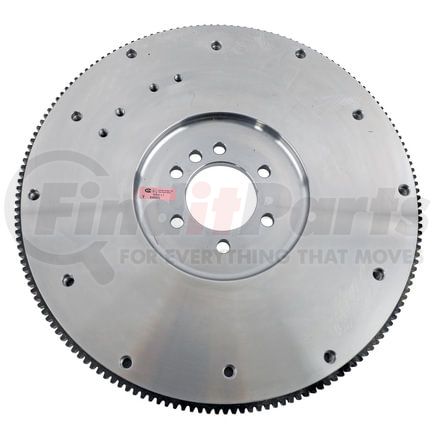

Name: Mcleod 460130 Flywheel: Steel: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 30 lbs.
SKU: 460130
Price: 397.99 USD
Availability: InStock

MCLEOD part description

Flywheel: Steel: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 30 lbs.

Product Description

Flywheel: Steel: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 30 lbs.

Application Summary

Chevrolet: 3B 59 - 59 4.6 L Engine, Chevrolet: 3C 59 - 59 4.6 L Engine, Chevrolet: 3D 59 - 59 4.6 L Engine, Chevrolet: 3E 59 - 59 4.6 L Engine, Chevrolet: 3F 59 - 59 4.6 L Engine, Chevrolet: 3G 59 - 59 4.6 L Engine, Chevrolet: Bel Air 63 - 65 3.8 L Engine, Chevrolet: Bel Air 65 - 73 4.1 L Engine, Chevrolet: Bel Air 55 - 59 4.3 L Engine, Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 59 - 69 5.3 L Engine, Chevrolet: Bel Air 58 - 75 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 75 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 75 7.4 L Engine, Chevrolet: Biscayne 63 - 65 3.8 L Engine, Chevrolet: Biscayne 65 - 72 4.1 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 58 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Blazer 69 - 74 4.1 L Engine, Chevrolet: Blazer 69 - 69 4.8 L Engine, Chevrolet: Blazer 69 - 73 5 L Engine, Chevrolet: Blazer 69 - 74 5.7 L Engine, Chevrolet: Blazer 73 - 74 7.4 L Engine, Chevrolet: Brookwood 69 - 72 4.1 L Engine, Chevrolet: Brookwood 58 - 61 4.6 L Engine, Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 58 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 61 - 61 6.7 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: C10 75 - 78 4.1 L Engine, Chevrolet: C10 77 - 85 5 L Engine, Chevrolet: C10 75 - 85 5.7 L Engine, Chevrolet: C10 82 - 85 6.2 L Engine, Chevrolet: C10 76 - 80 6.6 L Engine, Chevrolet: C10 75 - 8...

Features & Benefits

• Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Counter Weight Kit if Required (sold separately)

McLeod, Flywheel

Product Attributes

Make	Chevrolet
Flywheel Material	Billet steel
Marine Use	No
Replaceable Friction Surface	No
Engine Balance	Internal
Quantity	Sold individually.
Ring Gear Tooth Quantity	168-tooth
Sfi 1.1 Approved	Yes
Pressure Plate Style	Borg & Beck/Diaphragm
Rear Main Seal Style	2-piece
Counter Weight Kit if Required	560222 (sold separately)
Notes	Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Crankshaft to Flywheel Bolt Quantity	6-bolt
Engine 3	1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 2	1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 1	1955-85 SBC 2pc Seal (Large Register)
Disc Diameter (in.)	10.500/11.000/12.000 in.
Weight	30.000 lbs.

Additional Information

Core Return Days to Expiry	0
MSDS Sheet Number	N/A
Original Equipment Manufacturer	N/A
OEM's Part Number	N/A
Original Supplier	N/A
Refurbished Part	N
Remanufactured Part	N
Warranty Time	90
Warranty Time UOM	DA
Regulating State	CA
Regulating Postal Code	92807
Regulating County State	USA,CA
Regulating City State	Anaheim, CA
Country of Origin (Primary)	TW
Harmonized Tariff Code (Schedule B)	8708935000
Harmonized Tariff Code (HTS)	8708936000
NAFTA Preference Criterion Code	B
Stock Status	S
UPC	00887753011633
