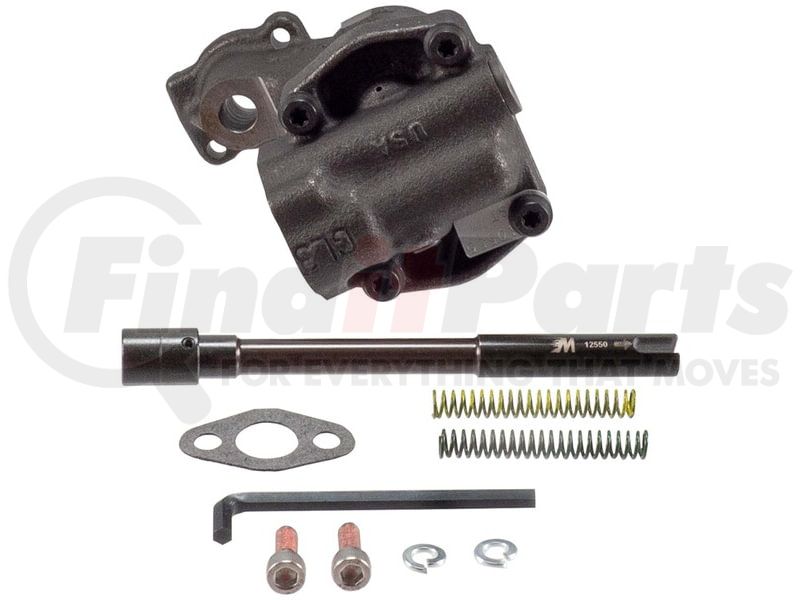

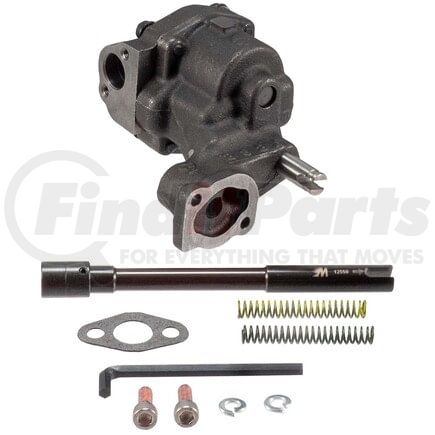

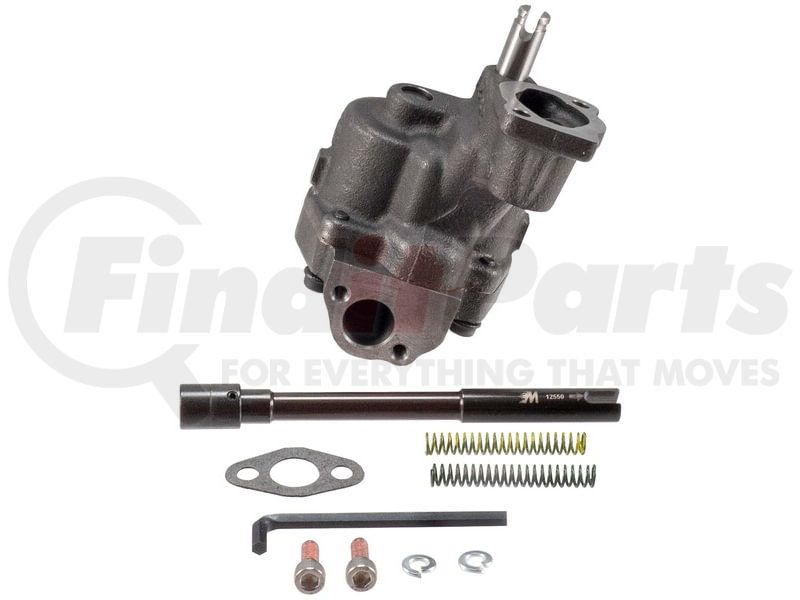

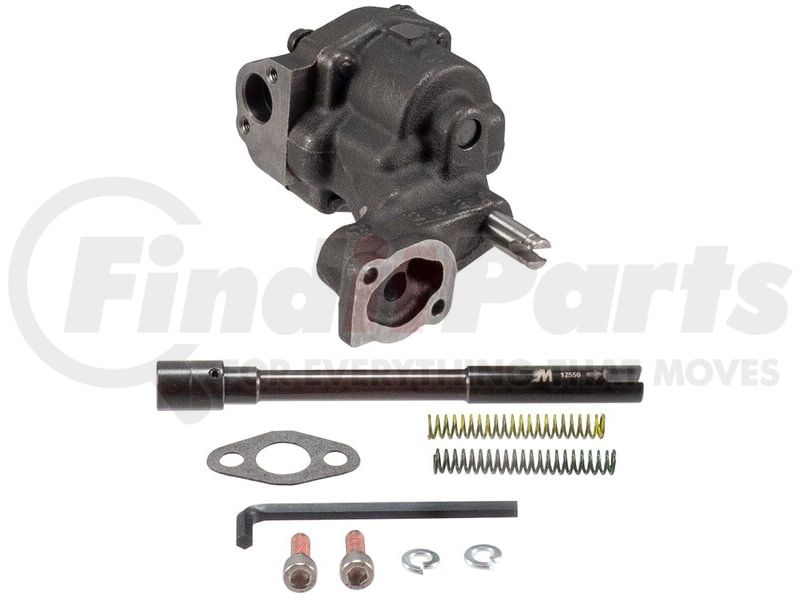

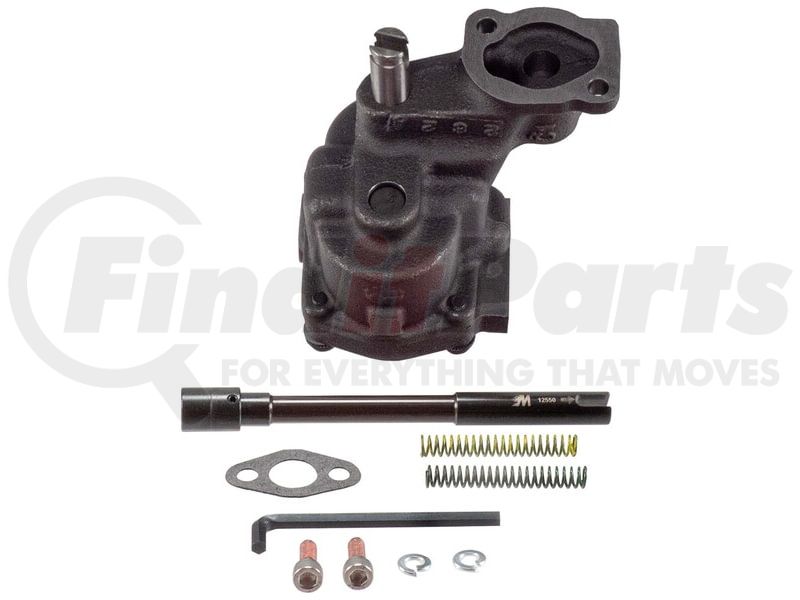

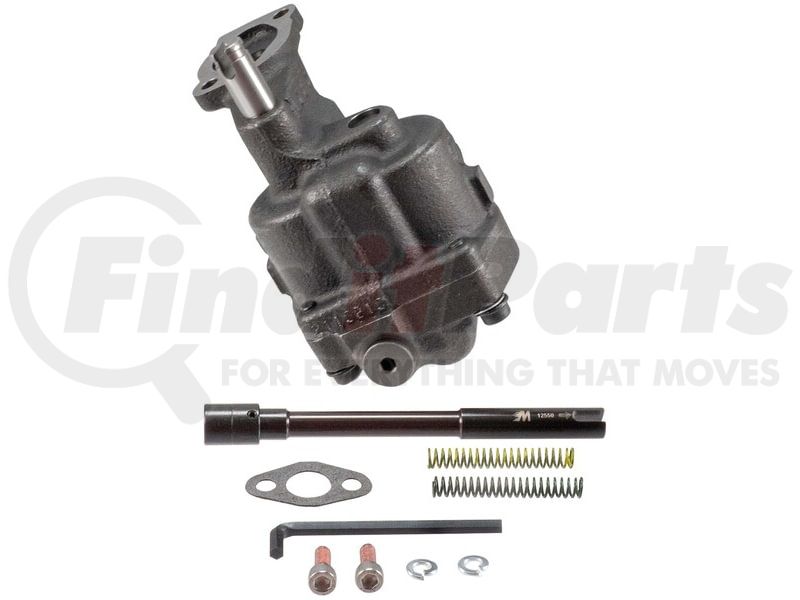

MELLING ENGINE PRODUCTS 10555ST Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- Features billet steel "Shark Tooth" helical gears.
- Includes +10PSI higher pressure relief spring and optional -10PSI relief spring.
- Cover is doweled to the pump housing to assure alignment of the shaft bores.
- Screw in plug retains relief valve spring instead of pin.
- Relief hole in cover uses screw in plug instead of pressed cup plug.
- Extended drive and idler shaft for additional support in the cover eliminating dynamic shfaft deflection at increased RPM levels.
- Includes 12550 chrome moly intermediate shaft with steel guide.
- Housing and Cover are CNC machined and phosphate coated.
MELLING ENGINE PRODUCTS 10555ST Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Gear Material | Billet Steel |
| Width | 3.220 IN |
| Width | 82.00 MM |
| Height | 4.750 IN |
| Height | 121.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Tube Diameter | 0.750 IN |
| Pickup Tube Diameter | 19.00 MM |
| Drive Shaft Included | Yes |
| Mounting Hole Diameter | 0.240 IN |
| Mounting Hole Diameter | 6.00 MM |
| Adjustable Bypass Pressure | Yes |
| Additional Cover Shaft Support | Yes |
| Alternate Pressure Springs Included | Yes |
| Gear Type | Shark Tooth Helical Gear |
| Anti-Cavitation | No |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 25% |
| Manufactured Pressure | (Pink) 70 PSI |
| Manufactured For | GM SBC |
| Upgrade for Pump Number | N/A |
| Optional Spring Pressure 1 | (Yellow) 58 PSI |
| Optional Spring Pressure 2 | (Green) 80 PSI |
| Screen Information | 3/4" Bolt on/Press In |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Yes |
| Governor Spinner Included | No |
| Guide Included | Yes |
| Inlet Size (in) | 0.750 |
| Intermediate Shaft Included | Yes |
| Hardware Included | Yes |
| Inlet Size (mm) | 19.00 |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Pickup Screen Included | No |
| Shaft Material | Chromoly Steel |
| Timing Cover Included | No |
| Washers Included | Yes |
| Housing Finish | Phosphate Coating |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| UPC | 00729295104742 |
MELLING ENGINE PRODUCTS 10555ST Cross References
