DELPHI TC7439 Part Description
Manufacturer
Product Description

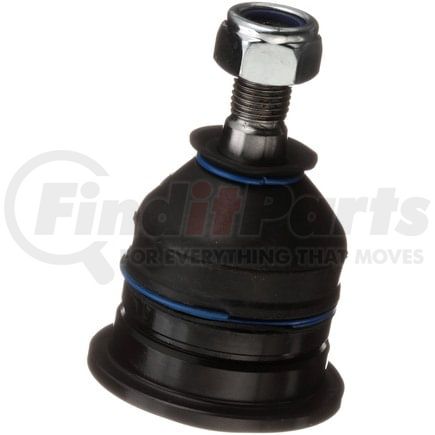

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7439 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.410 IN |
| Color | Black |
| Stud Thread Diameter | 0.55 IN |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Press In |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Nuts Included | Yes |
| Greaseable | No |
| Stud Thread Length | 0.91 IN |
| Wrench Size | 22 mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.74 IN |
| Stud Tapered End 1 Diameter | 0.59 IN |
| Stud Thread Pitch | 1.5 MM |
| Maximum Outside Diameter | 61.20 MM |
| Stud Thread Diameter | 14 MM |
| Stud Thread Length | 23 MM |
| Stud Tapered End 2 Diameter | 18.7 MM |
| Stud Tapered End 1 Diameter | 14.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604344354 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC7439 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | BJ69076XL, BJ69076 |
| Datsun/Nissan | 54524-1PA0A |
| MEVOTECH | CMS301210 |
| MOOG | K500427 |
| Mevotech | CTXMS301210 |
| N/A | TXMS30517, MS30517 |
DELPHI TC7439 Fits Vehicles
- Nissan TITAN XD (2016-2019)
- Nissan NV3500 (2012-2020)
- Nissan NV2500 (2012-2021)
- Nissan NV1500 (2012-2021)
