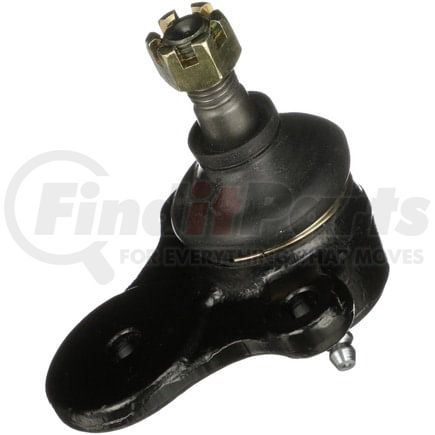

DELPHI TC6543 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6543 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | SAE1045 SCM440 |
| Maximum Outside Diameter | 1.250 IN |
| Color | Black |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 24.80 MM |
| Washers Included | Yes |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 20.1 MM |
| Wrench Size | 18.80mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 64.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Head Diameter | 11.90 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 24.80 MM |
| Tapered Stud | Yes |
| Stud Tapered End 1 Diameter | 12.6 MM |
| Maximum Outside Diameter | 31.75 MM |
| Mounting Bolt Length | 0.980 IN |
| Stud Thread Length | 0.79 IN |
| Mounting Bolt Head Diameter | 0.470 IN |
| Mounting Bolt Thread Length | 0.980 IN |
| Stud Tapered End 1 Diameter | 0.5 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TW |
| UPC | 00689604343715 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC6543 Cross References
DELPHI TC6543 Fits Vehicles
- Mazda Rotary Pickup (1974-1977)
- Mazda B2000 (1979-1981)
- Mazda B1800 (1977-1978)
- Mazda B1600 (1972-1976)
- Ford Courier (1972-1980)
