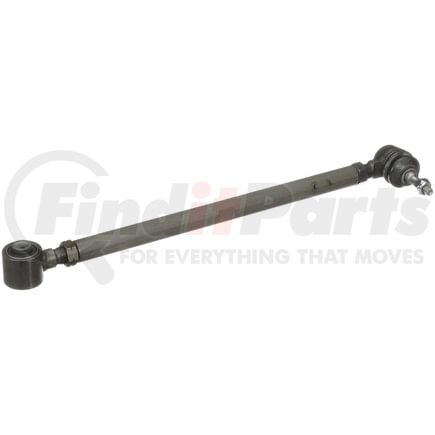

Delphi TC6167 - Control Arm and Ball Joint Assembly
$7249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Tubular |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 2.028 IN |
| Control Arm Maximum Width | 51.50 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 3.071 IN |
| Ball Joint Stud Length | 78.00 MM |
| Control Arm Maximum Length | 21.299 IN |
| Control Arm Maximum Length | 541.00 MM |
| Mounting Hole Diameter | 0.480 IN |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604332351 |
| VMRS Code | 016008142 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Mercury Mariner (2005-2011)
- Mazda Tribute (2001-2006, 2008-2011)
- Ford Escape (2001-2012)
