DELPHI TC6149 Part Description
Manufacturer
Product Description

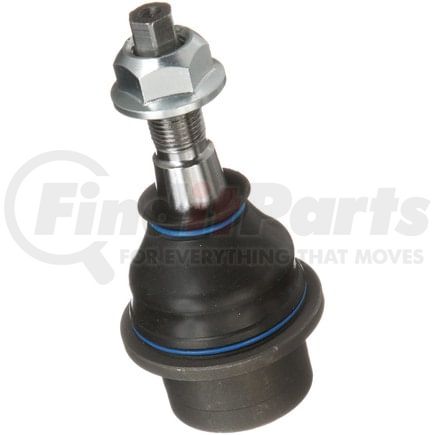

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6149 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower, Front Right Lower. For the position specific to your vehicle, refer to the Applications. |
| Material | Steel |
| Maximum Outside Diameter | 2.402 IN |
| Maximum Outside Diameter | 61.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 61 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 5.039 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.28 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.717 IN |
| Stud Tapered End 2 Diameter | 18.2 MM |
| Stud Tapered End 1 Diameter | 0.894 IN |
| Stud Tapered End 1 Diameter | 22.7 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 128.00 MM |
| Length | 5.040 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 127.99 MM |
| Stud Thread Length | 32.51 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604333891 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC6149 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 4877 199AB, 4877199AA |
| DORMAN | BJ82495, BJ82495PR |
| Dorman | 524-077, 524-078, CB81353, CB81353PR, CB81354, CB81354PR |
| MAS Industries | CB81353, CB81353PR |
| MEVOTECH | MS25545, TXMS25545 |
| MOOG | K500286T005 |
| MOOG Chassis Products | CK641927, K9561, RK641927, K500286 |
| N/A | 55398 377AB, MS25545, TXMS25545, BJ82495, 4877 198AB, 55398 376AB, 55366 438AG, 4877198AA, 4877 198AC, 55366438AC, 55366438AD, 55366 438AE, 55366 438AF, 55398 376AA, 68261 620AE, 68261 621AE, 68298346AB, 68298 346AA, 6829 8377AB, 55366 439AG, 4877 199AC, 55366439AC, 5536 6439AD, 55366 439AE, 55366 439AF, 55398 377AA, 68298 347AA |
| TRW | JBJ1142 |
DELPHI TC6149 Fits Vehicles
- Ram 1500 Classic (2019-2023)
- Ram 1500 (2011-2023)
- Dodge Ram 1500 (2006-2010)
