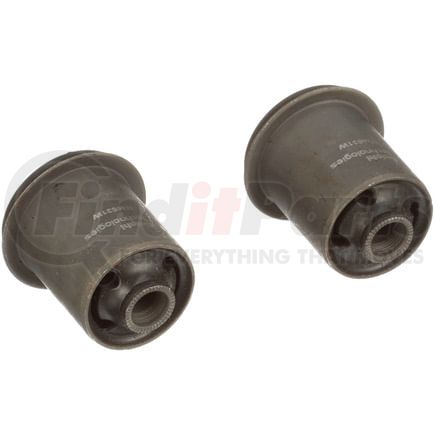

(888) 312-8812 Login SignupDELPHI TD4631W Suspension Control Arm Bushing Kit
Tap to view 9 more
$2999
Limited availability at this price!
In Stock
Get it by Friday, Dec 19
DELPHI TD4631W Part Description
DELPHI TD4631W Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Rubber to Metal |
| Length | 2.55 IN |
| Length | 65.0 MM |
| Color | Black |
| Inside Diameter | 0.48 IN |
| Inside Diameter | 12.2 MM |
| Outside Diameter | 2.204 IN |
| Outside Diameter | 56.0 MM |
| Height | 56.0 MM |
| Bushing Quantity | 2 |
| Bushing 1 Inner Diameter | 0.48 IN |
| Bushing 1 Inner Diameter | 12.2 MM |
| Bushing 2 Inner Diameter | 0.48 IN |
| Bushing 2 Inner Diameter | 12.2 MM |
| Bushing 2 Outer Diameter | 2.204 IN |
| Bushing 2 Outer Diameter | 56.0 MM |
| Bushing 1 Outer Diameter | 2.204 IN |
| Bushing 1 Outer Diameter | 56.0 MM |
| Grade Type | Regular |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4016993000 |
| Harmonized Tariff Code (HTS) | 4016996000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604330760 |
| VMRS Code | 016001011 |
| UNSPSC | 25172009 |
DELPHI TD4631W Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 09319-12044, 931912044, 96057765, 96057767 |
| MOOG Chassis Products | K9870 |
| N/A | 101-6287, GK9870, BCK73025PR, MK9870, BCK73025 |
DELPHI TD4631W Fits Vehicles
- GMC Tracker (1989-1991)
- Pontiac Sunrunner (1994-1997)
- Geo Tracker (1989-1997)
- Chevrolet Tracker (1989-1991, 1998)
- Suzuki X-90 (1996-1998)
- Suzuki Sidekick (1989-1998)
