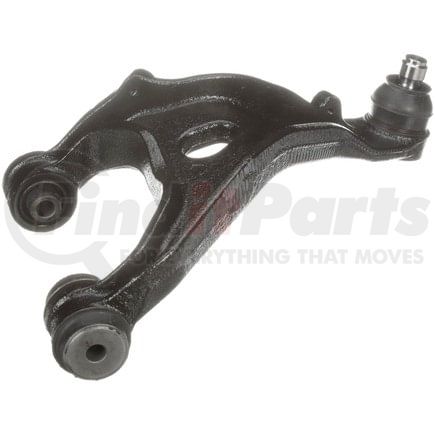

(888) 312-8812 Login SignupDELPHI TC7643 Control Arm and Ball Joint Assembly
Tap to view 13 more
$13449
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
DELPHI TC7643 Part Description
DELPHI TC7643 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 6.000 IN |
| Control Arm Maximum Width | 152.40 MM |
| Control Arm Color | Black |
| Control Arm Maximum Length | 9.969 IN |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.236 IN |
| Mounting Hole Diameter | 6.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Length | 253.21 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604331033 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC7643 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB72507, CB72507PR |
| Dorman | 524-773 |
| MAS Industries | CB72507, CB72507PR |
| MEVOTECH | CMS801180 |
| N/A | 1028384, CMS801180 |
| Subaru | 20252 FG010, 930030937, SU003-00364, SU00307493 |
DELPHI TC7643 Fits Vehicles
- Toyota 86 (2017-2020)
- Subaru WRX STI (2013-2014)
- Subaru WRX (2013-2014, 2022)
- Scion FR-S (2013-2016)
- Subaru BRZ (2013-2020, 2022)
- Subaru Impreza (2008-2014)
DELPHI TC7643 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC7643 Questions & Answers
No questions yet
Be the first to ask a question about this product!
