(888) 312-8812 Login SignupDELPHI TC6307 Control Arm and Ball Joint Assembly
Tap to view 13 more
$15799
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
DELPHI TC6307 Part Description
Manufacturer
Product Description

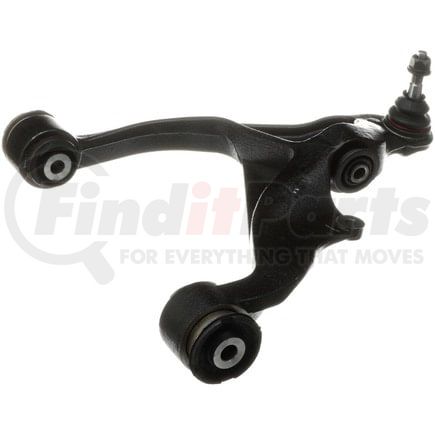

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6307 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | Yes |
| Control Arm Maximum Width | 19.921 IN |
| Control Arm Maximum Width | 506.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 4.646 IN |
| Ball Joint Stud Length | 118.00 MM |
| Control Arm Maximum Length | 20.571 IN |
| Control Arm Maximum Length | 522.50 MM |
| Mounting Hole Diameter | 0.713 IN |
| Mounting Hole Diameter | 18.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604336748 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6307 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 55366 438AE, 55366 438AF, 55366 438AG, 68298346AB |
| DORMAN | CB81134, CB81134PR, CB81354PR, CB81354 |
| Dorman | 522-556, 524-078 |
| MAS Industries | CB81134PR, CB81354, CB81354PR |
| MEVOTECH | CMS25150, CTXMS25150 |
| MOOG | RK621602, CK623022 |
| MOOG Chassis Products | K9561, RK621602 |
| N/A | GS25150, CB81134, CTXMS25150, CMS25150, 622.67055 |
| TRW | JTC2671 |
| UNITY AUTOMOTIVE | 2C-CAB641504, CAB621602, SC-700037 |
| VAICO | V33-0466 |
DELPHI TC6307 Fits Vehicles
- Ram 1500 Classic (2019-2022)
- Ram 1500 (2011-2018)
- Dodge Ram 1500 (2006-2010)
