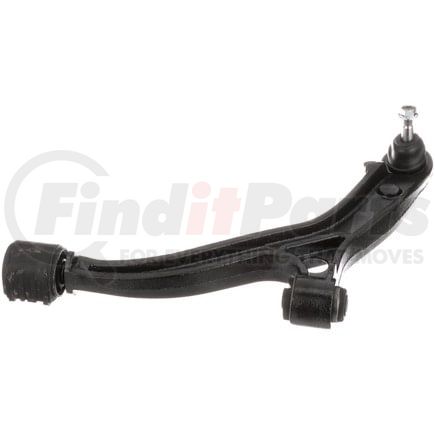

(888) 312-8812 Login SignupDELPHI TC5827 Control Arm and Ball Joint Assembly
Tap to view 13 more
$10399
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
DELPHI TC5827 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5827 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left, Front Left Lower. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.720 IN |
| Control Arm Maximum Width | 119.90 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.945 IN |
| Ball Joint Stud Length | 24.00 MM |
| Control Arm Maximum Length | 17.244 IN |
| Control Arm Maximum Length | 438.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604316214 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5827 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 4743 377AA, 4743 377AC, 4743 377AD, 4743 835AA, 4743 835AB, 4766 623AA |
| DORMAN | CB81023, CB82043PR, CB81023PR, CB82043 |
| Dorman | 521-193, 520-341, 523-642 |
| MAS Industries | CB82043PR |
| MEVOTECH | CMS20367 |
| MOOG Chassis Products | CK620171, RK620005, RK620171, CK620005, K7399 |
| Mevotech | CMS25139 |
| N/A | CMS20367, CB82043, GS20367, 623.67013 |
| TRW | JTC1498 |
DELPHI TC5827 Fits Vehicles
- Dodge Grand Caravan (2001-2007)
- Dodge Caravan (2001-2007)
- Chrysler Voyager (2001-2003)
- Chrysler Town & Country (2001-2007)
