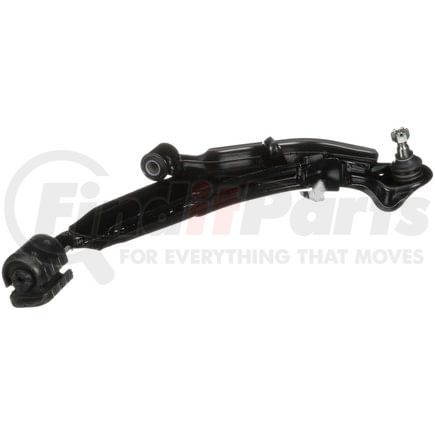

(888) 312-8812 Login SignupDELPHI TC5430 Control Arm and Ball Joint Assembly
Tap to view 20 more
$5849
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
DELPHI TC5430 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5430 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.150 IN |
| Control Arm Maximum Width | 105.40 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.961 IN |
| Ball Joint Stud Length | 24.40 MM |
| Control Arm Maximum Length | 19.543 IN |
| Control Arm Maximum Length | 496.40 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604314340 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5430 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-4915 |
| DORMAN | CB30428, CB30428PR |
| Datsun/Nissan | 54500-39U10, 54500-39U11, 54500-41U01, 54500-41U02, 54500-4B235, 5450041U00 |
| Dorman | 520-520 |
| MAS Industries | CB30428, CB30428PR |
| MEVOTECH | CMS20461 |
| MOOG | RK620352, CK620352 |
| MOOG Chassis Products | CK620352, K9818, RK620352, 102-4915 |
| N/A | CMS20461, GS20461, 54500-40U00, 54500-31U00, 5450039U01, 623.42043 |
| TRW | JTC567 |
DELPHI TC5430 Fits Vehicles
- Nissan Maxima (1995-1999)
- INFINITI I30 (1996-1999)
