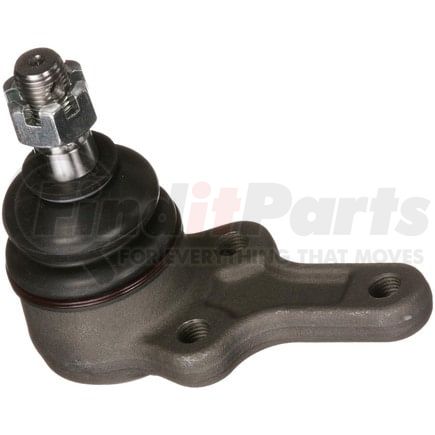

DELPHI TC5112 Ball Joint

★★★★★ (0)
Delphi TC5112 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 4 more

$28.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Dec 1
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC5112 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC5112 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Lower
MaterialSteel
ColorBlack
Stud Thread Diameter14 MM
Castle Nut IncludedYes
Grease Fitting IncludedYes
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width119.5 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length1.378 IN
Mounting Bolt Length35.00 MM
Washers IncludedYes
Height4.232 IN
Nuts IncludedYes
Mounting Hole Quantity3
AdjustableNo
GreaseableYes
Stud Thread Length1.051 IN
Wrench Size17mm
Stud TypeThreaded
Mounting TypeBolt-In
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter10.00 MM
Mounting Bolt Head Diameter0.748 IN
Mounting Bolt Head Diameter19.00 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.25 MM
Mounting Bolt Thread Length33.00 MM
Mount Plate IncludedNo
Tapered StudYes
Stud Taper Per Foot0.125 IN
Stud Tapered End 2 Diameter0.62 IN
Stud Tapered End 2 Diameter15.75 MM
Stud Tapered End 1 Diameter0.709 IN
Stud Tapered End 1 Diameter18 MM
Stud Thread Pitch1.5 MM
Stud Thread Diameter0.55 IN
Height107.49 MM
Stud Thread Length26.7 MM
Mounting Bolt Shank Diameter0.390 IN
Mounting Bolt Thread Length1.300 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708806590
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708807000
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604325643
VMRS Code016001015
UNSPSC25174203

DELPHI TC5112 Cross References

BrandPart Number
Beck/Arnley101-3419
DORMANB9292, B9292PR
Datsun/Nissan40160-S0104, 40160-S0105, 40160-S0106, 40160-S0126, 40160-S0127, 40160-S0128, 40160S0125
MEVOTECHMK9292
MOOG Chassis ProductsK9292
N/AMK9292, 40160P6525, B9292, GK9292, B9292PR

DELPHI TC5112 Fits Vehicles

  • Nissan 280ZX (1979-1983)
  • Nissan 810 (1977-1980)
