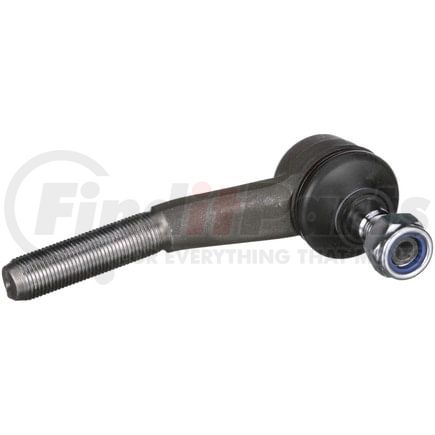

(888) 312-8812 Login SignupDELPHI TA5597 Tie Rod End
Tap to view 5 more
$1899
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
DELPHI TA5597 Part Description
DELPHI TA5597 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 148.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 74.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.11 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 128.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 17.00 MM |
| Grade Type | Standard |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| Length - Stud Center to End | 5.039 IN |
| End 1 Thread Diameter | 0.669 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604321867 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5597 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES2093R |
| Toyota | 1012020, 45046-39065, 45406-39065, W62549 |
| Dorman | T2093PR |
| N/A | 1011758, MES2093R, T2093PR, GES2093R, T2093 |
DELPHI TA5597 Fits Vehicles
- Toyota Hi-Lux (1972-1974)
- Toyota Pickup (1972-1978)
