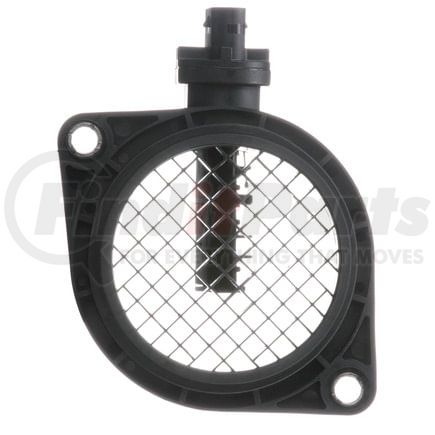

(888) 312-8812 Login SignupDELPHI AF10669 Mass Air Flow Sensor
$15499
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 2
DELPHI AF10669 Part Description
DELPHI AF10669 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.756 IN |
| Inlet Connection Diameter | 70 MM |
| Outlet Connection Diameter | 2.85 IN |
| Outlet Connection Diameter | 72.3 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 95.8 MM |
| Sensor Casing Width | 92 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 101.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.7 IN |
| Sensor Casing Width | 3.6 IN |
| Bolt Hole Center To Bolt Hole Center | 3.90 IN |
| Mounting Hole Diameter | 7 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604316276 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10669 Part Interchanges
| Brand | Part Number |
|---|---|
| Kia | 28164-03000 |
| Hyundai | 28164-03000 |
| BWD | MA1318 |
| Standard Motor Products | MAS0486 |
| N/A | 5S15818 |
DELPHI AF10669 Fits Vehicles
- Hyundai Ioniq (2017-2022)
- Kia Niro (2017-2021)
