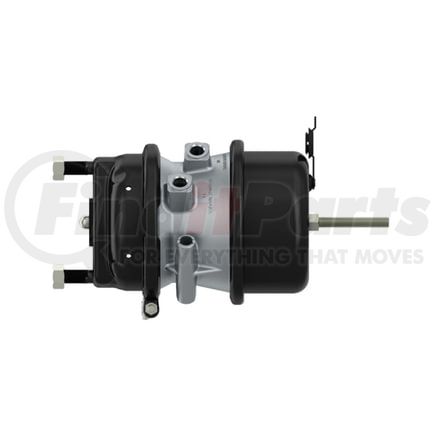

WABCO 9253800030 - Air Disc Brake Spring Brake Chamber Assembly
$23299
In stock
limited availability at this price!
. Learn more
WABCO part description
Product Description
DOUBLE DIAPHRAGM TRISTOP 20/24
Product Attributes
| Max. operating pressure | 10.0 bar |
| Distance between bolts | 120.6 mm |
| Weight | 15.43234 |
| Type | 20/24 |
| Port thread 11 | 3/8" - 18 NPTF |
| Total Length | 329.0 mm |
| Push-Rod Length | 15 mm |
| Temperature Range | -40°C to +80°C |
| Return-Spring Force | 200 N |
| Port Angle | 45° |
| Stroke | 64.0 mm |
| Push-rod thread | Ball R8 |
| Release Pressure | 5.1 bar |
| Bolt Lengths | 43.0 mm |
| Type Of Operation | Disc |
| Version | Without boot |
| Port thread 12 | 3/8" - 18 NPTF |
| Bolt Threads | M16 x 1.5 |
WABCO 9253800030 Cross Reference
We have 1 alternatives for the 9253800030 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
