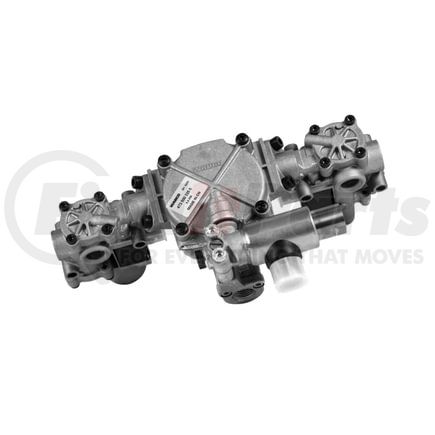

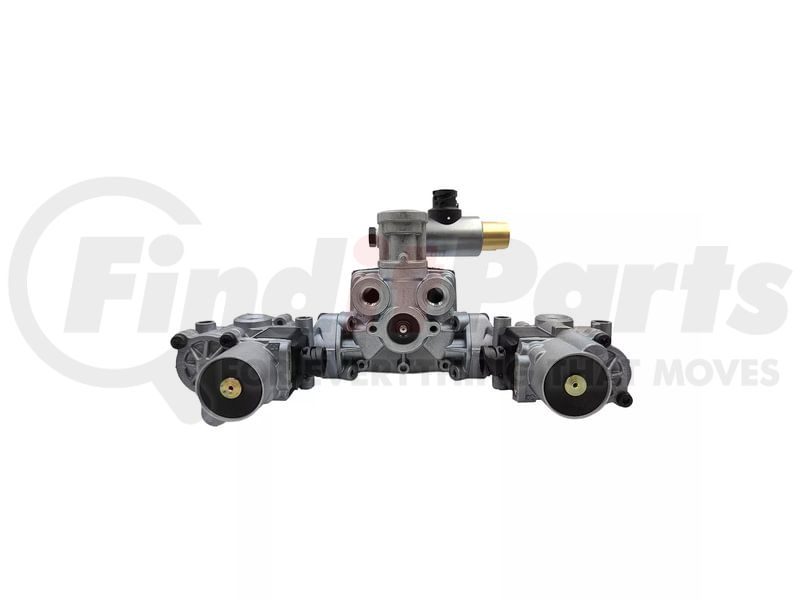

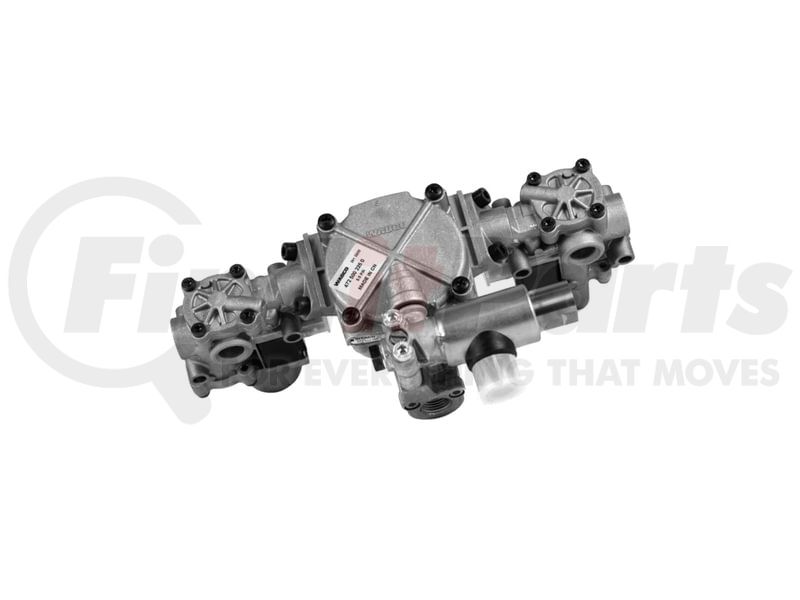

Name: WABCO 4725002250 ABS Modulator Valve - ABS Axle Package
SKU: 4725002250
Price: 922.99 USD
Availability: InStock

WABCO part description

ABS Axle Package

Product Description

REAR VALVE PKG

Product Attributes

Port thread 2.1	1/2 - 14 DRYSEAL NPTF
Voltage	12 V
Max. operating pressure	11.0 bar
Size	320 x 170 x 174
Temperature Range	-40°C to +80°C
Electrical connection	DIN 72585-A1-3.1-Sn/K1, DIN 72585-A1-2.1-Sn/K1
Port thread 3	Exhaust
Port thread 2	3/8 - 18 DRYSEAL NPTF
System	4S/4M + (1M) 6S/4M
Response Pressure	0.38 bar
Port thread 1	1/2 - 14 DRYSEAL NPTF
Protection class	IP66, IP69K
Weight	3.9683
Port thread 4	1/4" - 18 DRYSEAL NPTF
Calculated Volume (dm³)	9.4656
