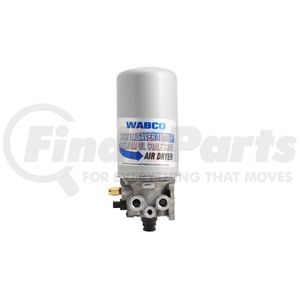

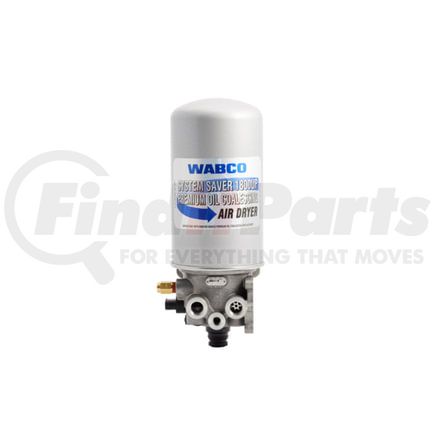

WABCO 4324210520 - AD-SysS 1800UP Single Cartridge Air Brake Dryer with Coalescing Filter, Replaced by 4324210380
$1,00249
MSRP: $2,292.72
Save: $1,290.23
In stock
limited availability at this price!
. Learn more
WABCO part description
AD SYSS 1800UP,, with Coal
Product Description
SS1800UP 12V AD
Product Attributes
| Port Thread 4/23 | 1/4" - 18 NPTF |
| Voltage | 12 V |
| Calculated Volume (dm³) | 14.293 |
| Temperature Range | -40°C to +80°C |
| Heating Connection | 280 Metri-Pack Nr. 1202 0599 |
| Cut-Out Pressure | 7.9 to 9.0 Bar |
| Port thread 21 | 1/2" - 14 NPTF |
| Port thread 1 | 1/2" - 14 NPTF |
| Max. operating pressure | 9.0 Bar |
| Exhaust | Snap-On Contour |
| Port thread 22 | 1/4" - 18 NPTF |
| Port thread 4 | 1/4" - 18 NPTF |
| Weight | 12.66 |
| Opening Pressure | 12.80 Bar |
| Cartridge Type | Desiccant Cartridge |
| Port thread 3 | JED- 463-0 |
| Size | 411 x 184 x 189 |
| Calculated Volume (Cubic Decimeter) | 14.293 |
| Part Type | Premium Original Quality |
| Product Category | Device |
| Technical specification | OE Specification |
Part Interchanges
WABCO 4324210520 Cross Reference
We have 11 alternatives for the 4324210520 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
